The continuous beam shown below, is fixed at node 1, has a roller at node 3 and is hinged at node 2. The span 1-2 is 5.3

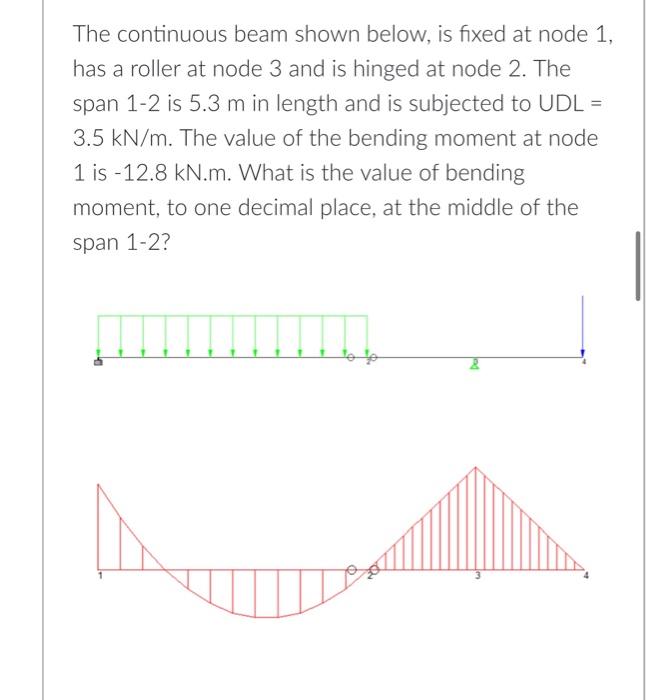

The continuous beam shown below, is fixed at node 1, has a roller at node 3 and is hinged at node 2. The span 1-2 is 5.3 m in length and is subjected to UDL = 3.5 kN/m. The value of the bending moment at node 1 is -12.8 kN.m. What is the value of bending moment, to one decimal place, at the middle of the span 1-2?
