Incorrect The Scotch-yoke mechanism converts rotational motion of the disk to oscillatory translation of the shaft. Usin

[answerhappygod]

Incorrect The Scotch Yoke Mechanism Converts Rotational Motion Of The Disk To Oscillatory Translation Of The Shaft Usin 1 (328.41 KiB) Viewed 33 times

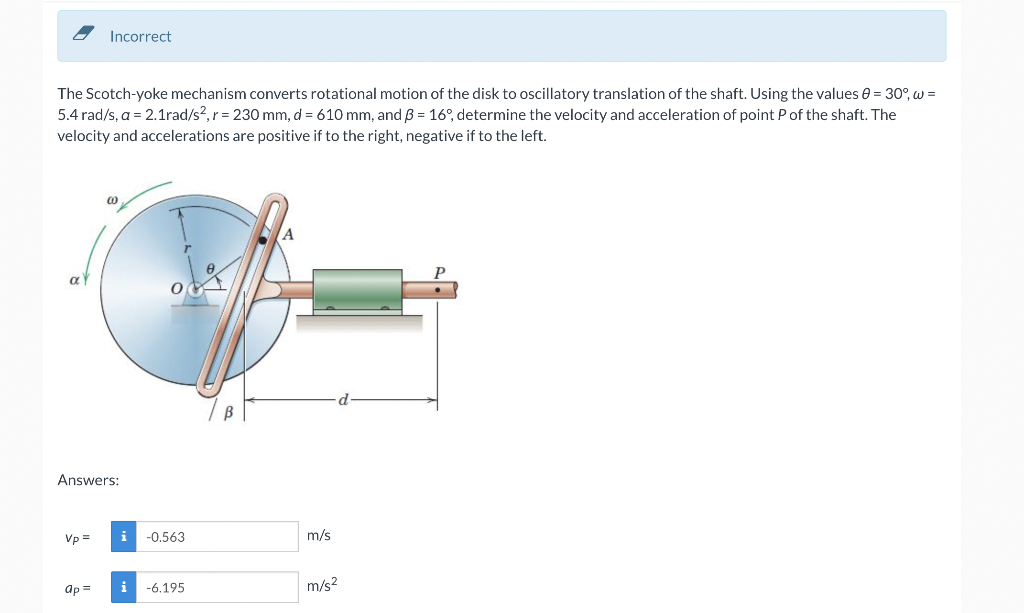

Incorrect The Scotch-yoke mechanism converts rotational motion of the disk to oscillatory translation of the shaft. Using the values 0 = 30%, w = 5.4 rad/s, a = 2.1rad/s², r = 230 mm, d = 610 mm, and 3 = 16°, determine the velocity and acceleration of point P of the shaft. The velocity and accelerations are positive if to the right, negative if to the left. (0 Answers: Vp = m/s ap= m/s² i i -0.563 -6.195
