Draw the influence line for (a) the moment at B, (b) the shear at C, and (c) the vertical reaction at A. Assume support

Post by answerhappygod »

Draw The Influence Line For A The Moment At B B The Shear At C And C The Vertical Reaction At A Assume Support 1

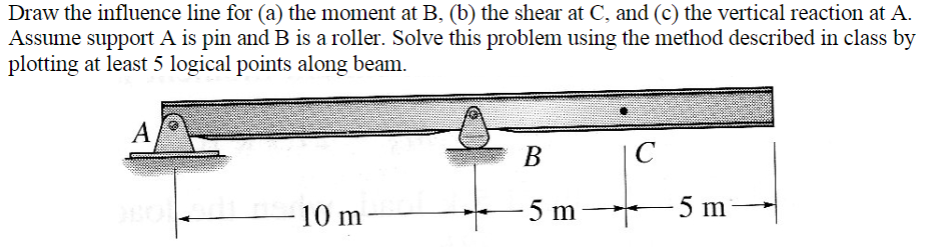

Draw The Influence Line For A The Moment At B B The Shear At C And C The Vertical Reaction At A Assume Support 1 (122.28 KiB) Viewed 72 times
Draw the influence line for (a) the moment at B, (b) the shear at C, and (c) the vertical reaction at A. Assume support A is pin and B is a roller. Solve this problem using the method described in class by plotting at least 5 logical points along beam. A B с 380 10 m -5 m 5 m
