3. Consider that the station of the Spiral to Curve (STA SC) is 553+77.35 for a four-lane highway (two per direction) wi
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Consider that the station of the Spiral to Curve (STA SC) is 553+77.35 for a four-lane highway (two per direction) wi

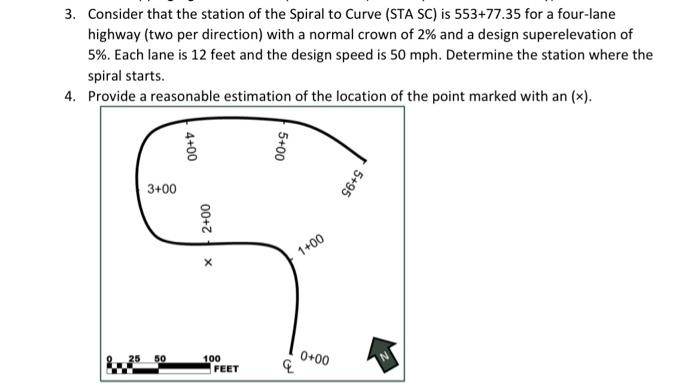

3. Consider that the station of the Spiral to Curve (STA SC) is 553+77.35 for a four-lane highway (two per direction) with a normal crown of 2% and a design superelevation of 5%. Each lane is 12 feet and the design speed is 50 mph. Determine the station where the spiral starts. 4. Provide a reasonable estimation of the location of the point marked with an (x). 25 3+00 50 4+00 5+00 2+00 X 100 FEET 1+00 0+00 q 5+95
