For The Two Span Parking Structure Beam With Dimensions Material Properties And Loads Shown Below Find The Following 1 (71.8 KiB) Viewed 38 times
For The Two Span Parking Structure Beam With Dimensions Material Properties And Loads Shown Below Find The Following 2 (44.04 KiB) Viewed 38 times

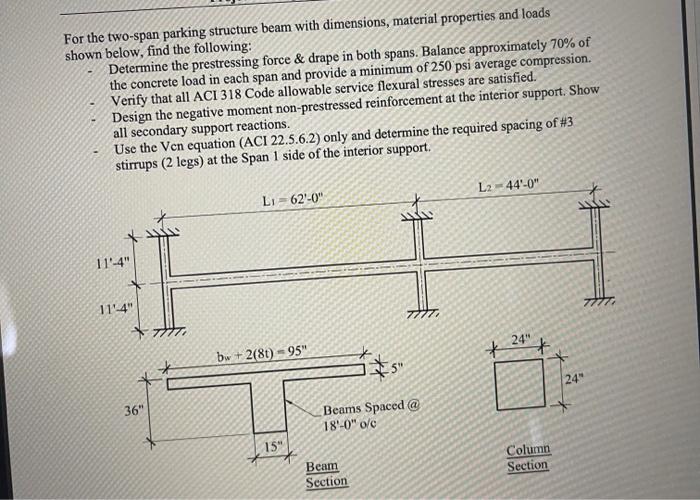

For the two-span parking structure beam with dimensions, material properties and loads shown below, find the following: Determine the prestressing force & drape in both spans. Balance approximately 70% of the concrete load in each span and provide a minimum of 250 psi average compression. Verify that all ACI 318 Code allowable service flexural stresses are satisfied. Design the negative moment non-prestressed reinforcement at the interior support. Show all secondary support reactions. Use the Ven equation (ACI 22.5.6.2) only and determine the required spacing of #3 stirrups (2 legs) at the Span 1 side of the interior support. L₁ 62'-0" L2-44'-0" 11'-4" 11-4" 24" Column Section 36" bw +2(8t) 95" M 15" 55" Beams Spaced @ 18'-0" o/c Beam Section L 24"

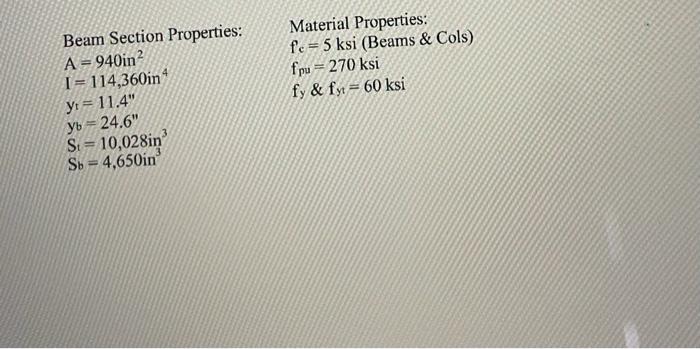

Beam Section Properties: A = 940in² I=114,360in y=11.4" yь = 24.6" St=10,028in Sb=4,650in Material Properties: fe= 5 ksi (Beams & Cols) fpu=270 ksi fy & fyt 60 ksi -
