Safe Support Spacing and S-1-bd Table below shows formulas for shear, bending moment and deflection for three-span conti

Post by answerhappygod »

Safe Support Spacing And S 1 Bd Table Below Shows Formulas For Shear Bending Moment And Deflection For Three Span Conti 1
Safe Support Spacing And S 1 Bd Table Below Shows Formulas For Shear Bending Moment And Deflection For Three Span Conti 1 (126.39 KiB) Viewed 30 times

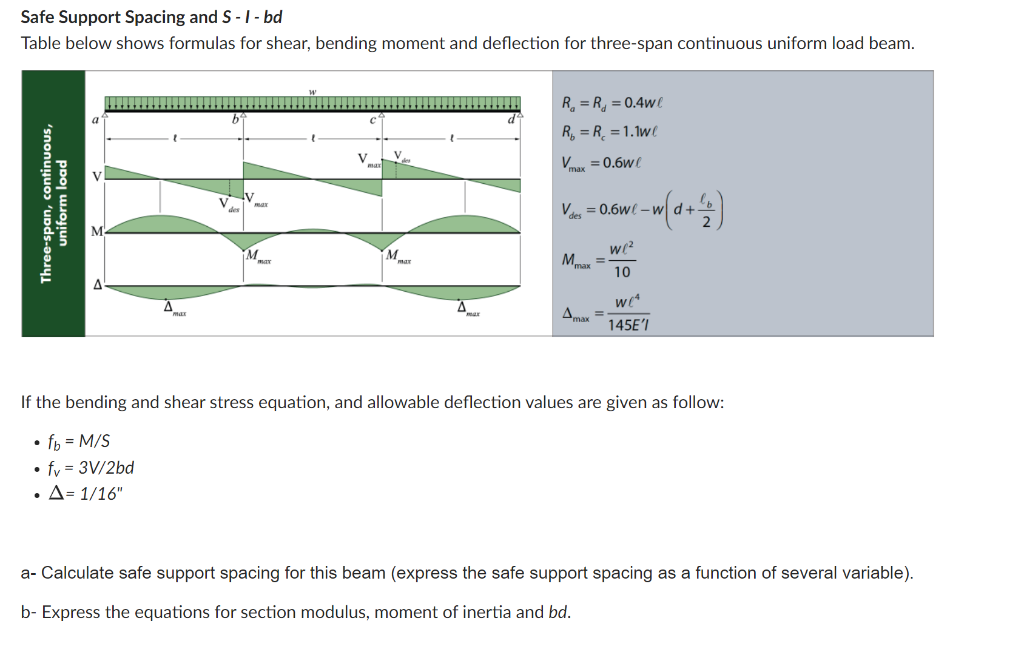

Safe Support Spacing and S-1-bd Table below shows formulas for shear, bending moment and deflection for three-span continuous uniform load beam. R₁ = R₁ = 0.4wl R₁ = R₁ = 1.1wl V V Vmax=0.6wl Vdes = 0.6wl-w M M w(² Mmax= 10 A AMEE we Amax 145E'I If the bending and shear stress equation, and allowable deflection values are given as follow: • fb = M/S • fv = 3V/2bd • A = 1/16" a- Calculate safe support spacing for this beam (express the safe support spacing as a function of several variable). b- Express the equations for section modulus, moment of inertia and bd. Three-span, continuous, uniform l | = -w (d+ 12 )
