Problem 2 A composite simple span beam is made up of a wide flange with two cover plates of 320 mm x 12 mm placed at the

[answerhappygod]

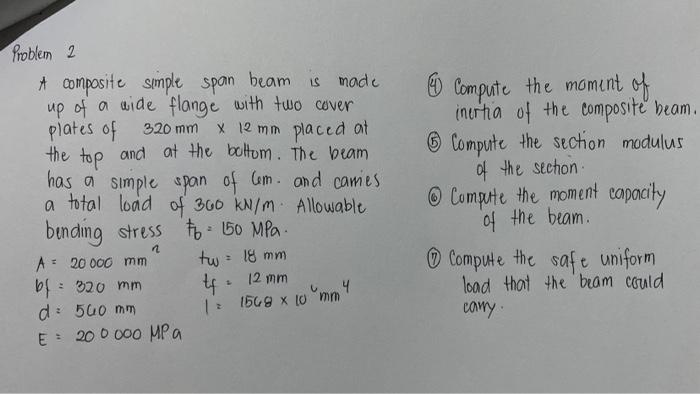

Problem 2 A Composite Simple Span Beam Is Made Up Of A Wide Flange With Two Cover Plates Of 320 Mm X 12 Mm Placed At The 1 (33.77 KiB) Viewed 54 times

Problem 2 A composite simple span beam is made up of a wide flange with two cover plates of 320 mm x 12 mm placed at the top and at the bottom. The beam has a simple span of Gem. and cames a total load of 300 kN/m Allowable bending to 150 MPa. stress 2 n A = 20 000 mm tw = 18 mm bf = 320 mm tf = 12 mm |= 1569 × 10 "mm 4 d = 500 mm E = = 200 000 MP a Compute the moment of inertia of the composite beam. Compute the section modulus of the section. Compute the moment capacity of the beam. Compute the safe uniform load that the beam could carry.
