Solve it by consistent deflection method

Post by answerhappygod »

Solve it by consistent deflection method
Solve It By Consistent Deflection Method 1
Solve It By Consistent Deflection Method 1 (30.33 KiB) Viewed 44 times

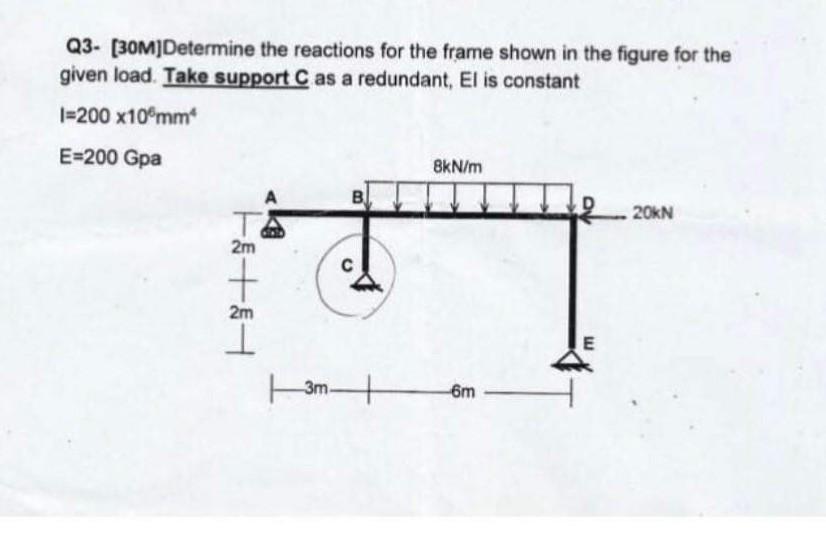

Q3- [30M]Determine the reactions for the frame shown in the figure for the given load. Take support C as a redundant, El is constant I=200 x10 mm E=200 Gpa 8kN/m 20KN -6m 16+4 2m I B |3m| E
