answer in 3 decimal places please, quickly

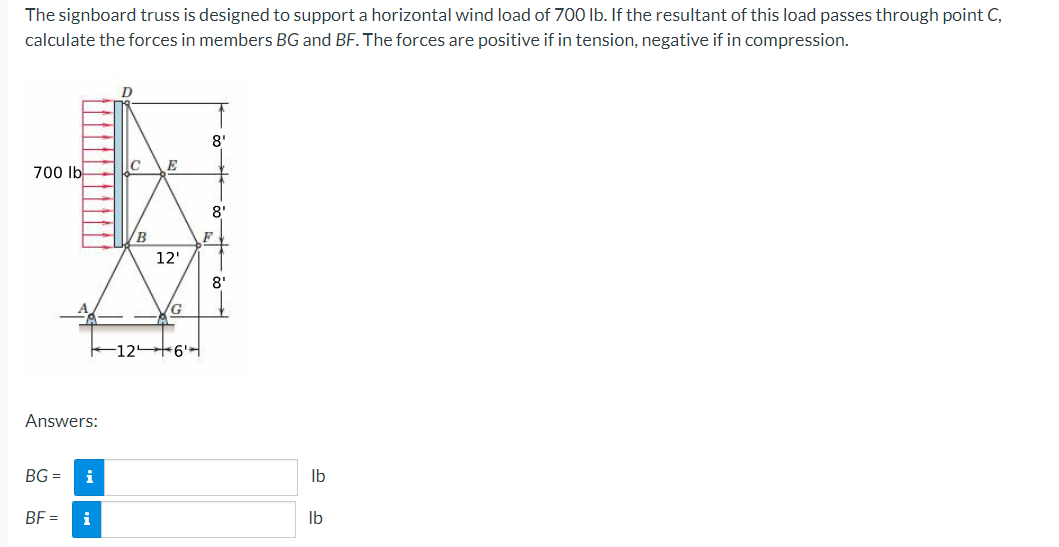

The signboard truss is designed to support a horizontal wind load of 700 lb. If the resultant of this load passes through point C, calculate the forces in members BG and BF. The forces are positive if in tension, negative if in compression. D 8' 700 lb 8' Answers: BG= i BF = i C B N 12' /G 126 F 8' lb lb
