The signboard truss is designed to support a horizontal wind load of 900 lb. If the resultant of this load passes throug

Post by answerhappygod »

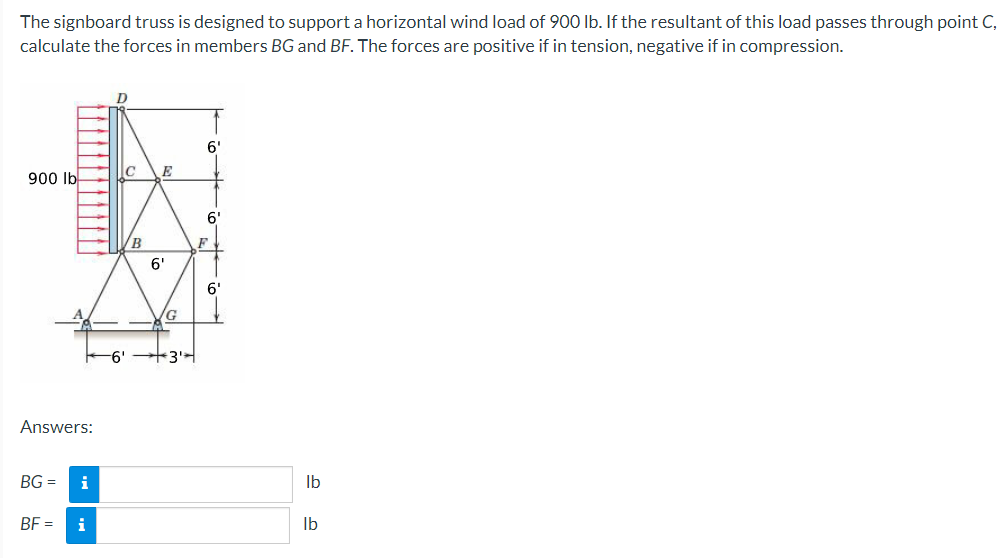

The Signboard Truss Is Designed To Support A Horizontal Wind Load Of 900 Lb If The Resultant Of This Load Passes Throug 1
The Signboard Truss Is Designed To Support A Horizontal Wind Load Of 900 Lb If The Resultant Of This Load Passes Throug 1 (63.67 KiB) Viewed 49 times
The signboard truss is designed to support a horizontal wind load of 900 lb. If the resultant of this load passes through point C, calculate the forces in members BG and BF. The forces are positive if in tension, negative if in compression. 6' C E 900 lb 6 /B Answers: BG= i BF = i 6' G 3' F lb lb
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
