(14 marks) QUESTION A4 a) The 0.5-hour unit hydrograph for a catchment is shown in Table 4: Table 4. Unit Hydrograph Tim

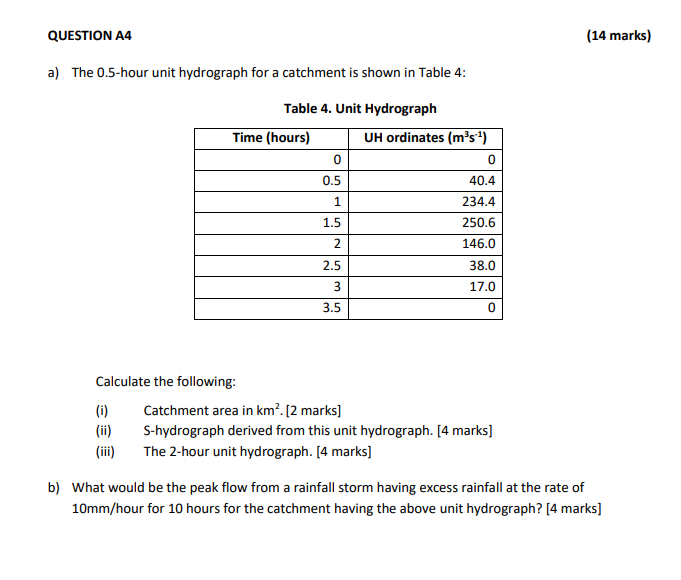

(14 marks) QUESTION A4 a) The 0.5-hour unit hydrograph for a catchment is shown in Table 4: Table 4. Unit Hydrograph Time (hours) UH ordinates (m³s¹) 0 0 0.5 40.4 1 234.4 1.5 250.6 2 146.0 2.5 38.0 3 17.0 3.5 0 Calculate the following: (i) Catchment area in km². [2 marks] (ii) S-hydrograph derived from this unit hydrograph. [4 marks] The 2-hour unit hydrograph. [4 marks] (iii) b) What would be the peak flow from a rainfall storm having excess rainfall at the rate of 10mm/hour for 10 hours for the catchment having the above unit hydrograph? [4 marks]
