3. 3 resistors are connected to a 12 v battery. The values are
listed in the table below.
a) Draw a picture of the 3 resistors connected in parallel with
the battery.
b) Calculate the total resistance. Show all work
c) Calculate the current through, voltage across and power used
by each resistor.

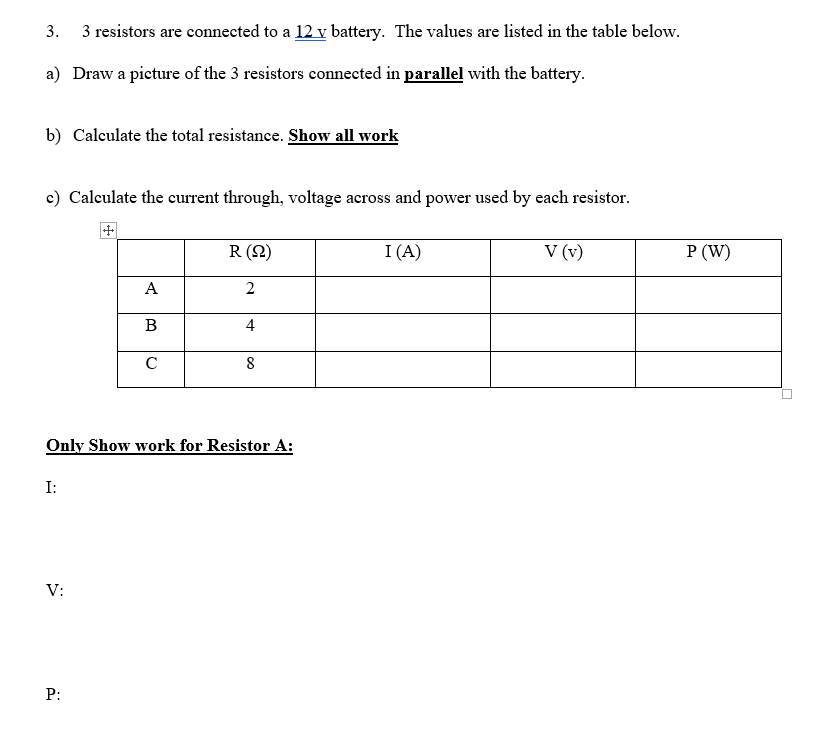

3 3 Resistors Are Connected To A 12 V Battery The Values Are Listed In The Table Below A Draw A Picture Of The 3 Res 1 (22.47 KiB) Viewed 36 times
3. 3 resistors are connected to a 12 v battery. The values are listed in the table below. a) Draw a picture of the 3 resistors connected in parallel with the battery. b) Calculate the total resistance. Show all work c) Calculate the current through, voltage across and power used by each resistor. R (2) I(A) V (v) P (W) A 2 B 4 с 8 Only Show work for Resistor A: I: V: P:
