Section B Questions Satisfactory Y N Q3. The 120-N force is applied as shown to one end of the curved wrench. If a=30° c

[answerhappygod]

Section B Questions Satisfactory Y N Q3 The 120 N Force Is Applied As Shown To One End Of The Curved Wrench If A 30 C 1 (105.98 KiB) Viewed 44 times

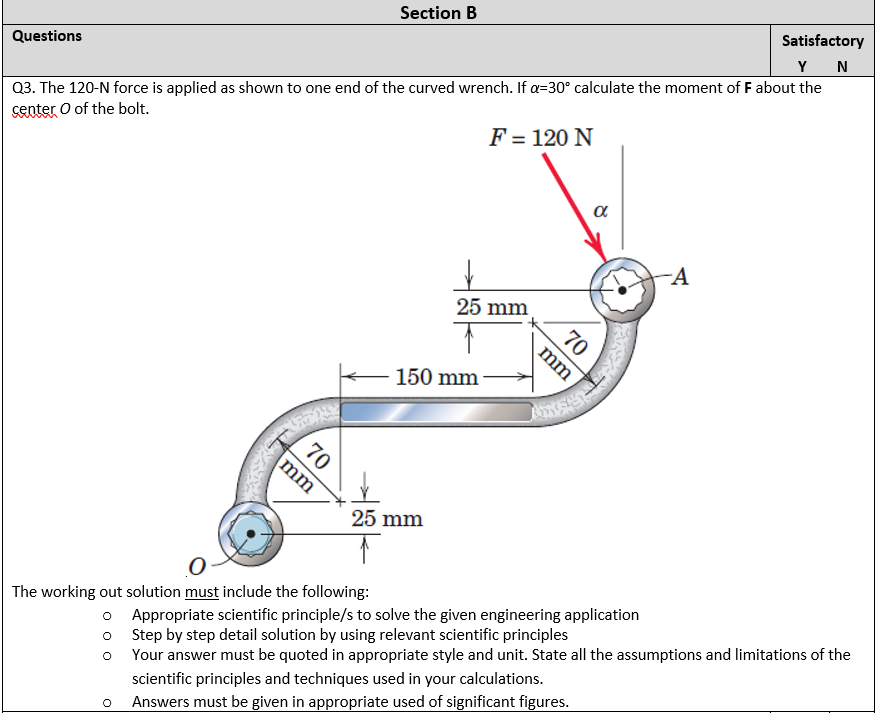

Section B Questions Satisfactory Y N Q3. The 120-N force is applied as shown to one end of the curved wrench. If a=30° calculate the moment of F about the center of the bolt. F = 120 N a -A 25 mm mm 70 150 mm mm 70 25 mm 0 The working out solution must include the following: O Appropriate scientific principle/s to solve the given engineering application Step by step detail solution by using relevant scientific principles Your answer must be quoted in appropriate style and unit. State all the assumptions and limitations of the scientific principles and techniques used in your calculations. Answers must be given in appropriate used of significant figures. 0 0
