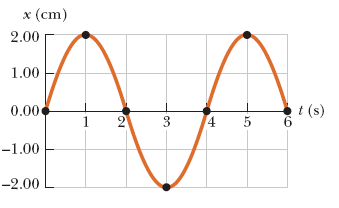

An object attached to a spring vibrates with simple harmonic
motion as described by the figure below.
An Object Attached To A Spring Vibrates With Simple Harmonic Motion As Described By The Figure Below A For This Motio 1 (31.78 KiB) Viewed 22 times
(a) For this motion, find the amplitude.
Answer in cm
(b) For this motion, find the period.
Answer in s
(c) For this motion, find the angular frequency.
Answer in rad/s
(d) For this motion, find the maximum speed.
Answer in cm/s
(e) For this motion, find the maximum acceleration.
Answer in cm/s2
(f) For this motion, find an equation for its
position x in terms of a sine function. (Submit
a file with a maximum size of 1 MB.)
х * (cm) 2.00 1.00 0.00 AA t(s) 1 2 2 3 4 5 6 -1.00 -2.00
