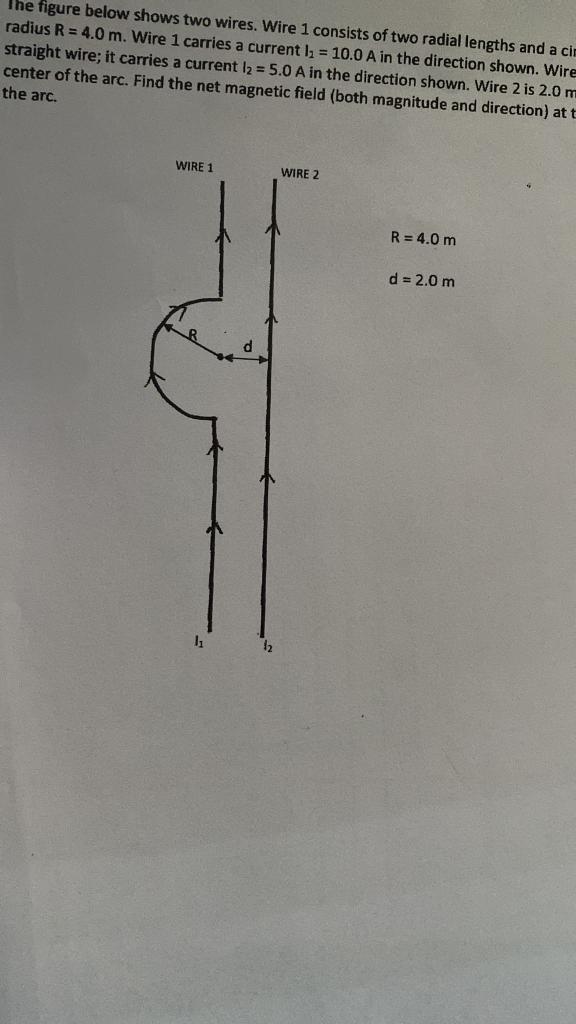

The figure below shows two wires. Wire 1 consists of two radial
lengths and a circular arc of
radius R = 4.0 m. Wire 1 carries a current 12 = 10.0 A in the
direction shown. Wire 2 is a long
straight wire; it carries a current l2 = 5.0 A in the direction
shown. Wire 2 is 2.0 m from the
center of the arc. Find the net magnetic field (both magnitude
and direction) at the center of the arc.
