3. For the circuit shown below.determine the Millman's Equivalent Circuit (MEC) as seen by the 20 load resistor, Ru. 40

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

3. For the circuit shown below.determine the Millman's Equivalent Circuit (MEC) as seen by the 20 load resistor, Ru. 40

Post by answerhappygod »

3 For The Circuit Shown Below Determine The Millman S Equivalent Circuit Mec As Seen By The 20 Load Resistor Ru 40 1
3 For The Circuit Shown Below Determine The Millman S Equivalent Circuit Mec As Seen By The 20 Load Resistor Ru 40 1 (21.45 KiB) Viewed 42 times

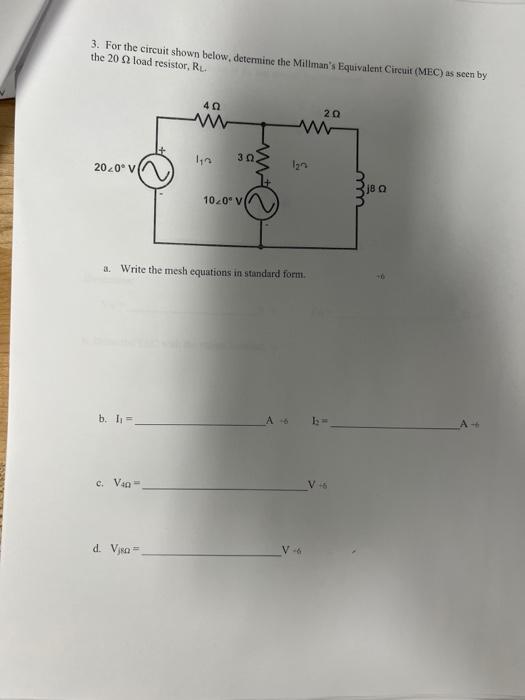

3. For the circuit shown below.determine the Millman's Equivalent Circuit (MEC) as seen by the 20 load resistor, Ru. 40 20 lin 3Ω. 2020 V lan 8 10_0 a. Write the mesh equations in standard form. b. I, A to 6. Vag= V 6 d. Visa V 6
