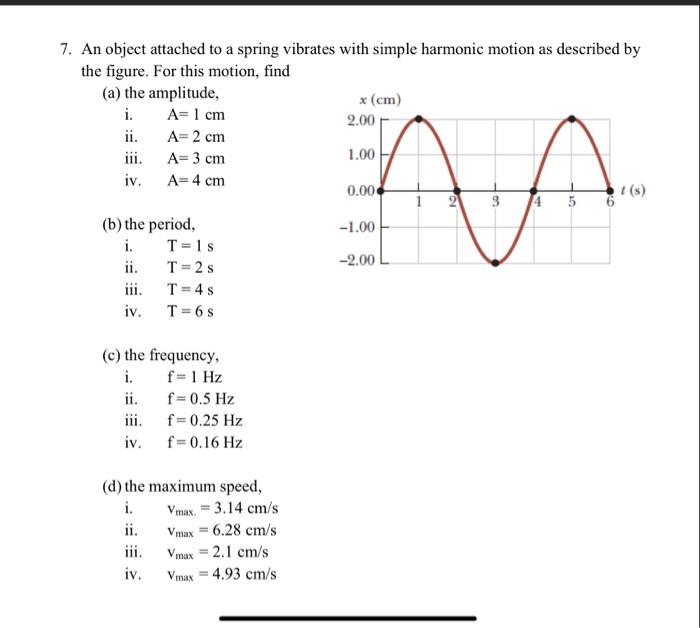

7. An object attached to a spring vibrates with simple harmonic motion as described by the figure. For this motion, find

[answerhappygod]

7 An Object Attached To A Spring Vibrates With Simple Harmonic Motion As Described By The Figure For This Motion Find 1 (35.69 KiB) Viewed 44 times

7. An object attached to a spring vibrates with simple harmonic motion as described by the figure. For this motion, find (a) the amplitude, x (cm) i. A=1 cm 2.00 ii. A= 2 cm iii. A=3 cm 1.00 iv. A=4 cm 0.00 2 3 4 5 (b) the period, -1.00 i. T=1s ii. T=2 s -2.00 iii. T=4s iv. T = 65 АЛА (c) the frequency, i. f = 1 Hz ii. f=0.5 Hz iii. f=0.25 Hz iv. f-0.16 Hz (d) the maximum speed, i. Vmax. = 3.14 cm/s ii. Vmax = 6.28 cm/s iii. Vmax = 2.1 cm/s iv. Vmax = 4.93 cm/s
