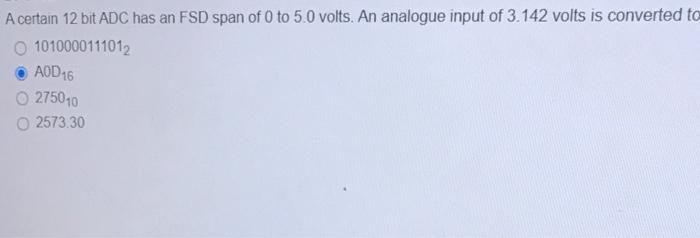

A certain 12 bit ADC has an FSD span of 0 to 5.0 volts. An analogue input of 3.142 volts is converted to 1010000111012 AOD 16 275010 2573.30

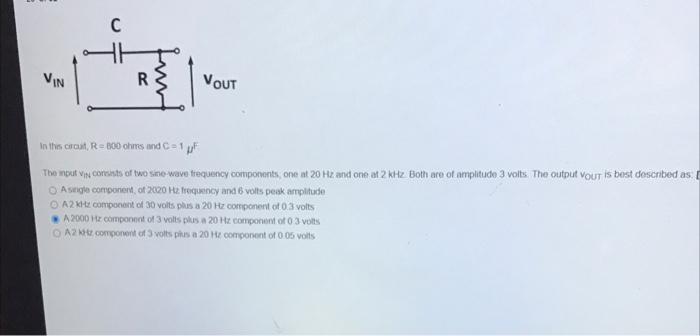

с VIN R VOUT In thin crust, R=100ches und C=1 The mout vi corsists of two site-wave frequency components, one nt 20 Hz and one at 2 kHz Both are of amplitude 3 volts. The output Vout is best described as Astige componer of 2020 Hz Frecy and 6 volts peak amplitude A2 component of 30 volts plus a 20 Hz component of 0.3 volts 2000 Hz component of 3 volts plus a 20 Hz component of 3 volts A2 component of volts pires a 20H: component of 0 05 volts

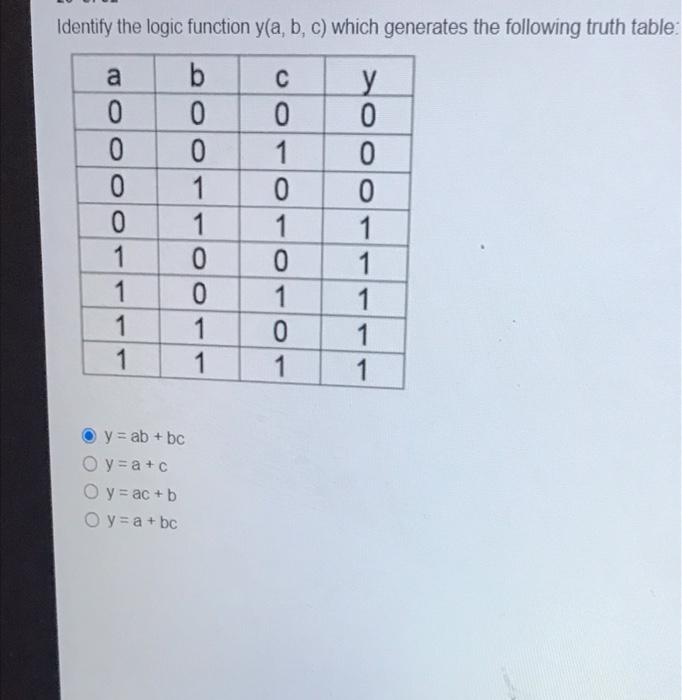

Identify the logic function y(a, b, c) which generates the following truth table: a 0 0 0 0 1 1 1 1 b 0 0 1 1 0 0 1 1 с 0 1 0 1 0 1 0 1 у 0 0 0 1 1 1 1 1 y = ab + bc O y = a + c O y = ac + b O y = a + bc
