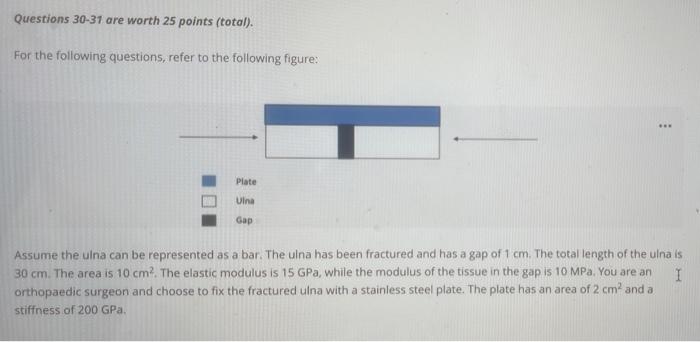

Questions 30-31 are worth 25 points (total). For the following questions, refer to the following figure: Plate Uina Gap Assume the ulna can be represented as a bar. The ulna has been fractured and has a gap of 1 cm. The total length of the ulnais 30 cm. The area is 10 cm. The elastic modulus is 15 GPa while the modulus of the tissue in the gap is 10 MPa. You are an I orthopaedic surgeon and choose to fix the fractured ulna with a stainless steel plate. The plate has an area of 2 cm and a stiffness of 200 GPa.

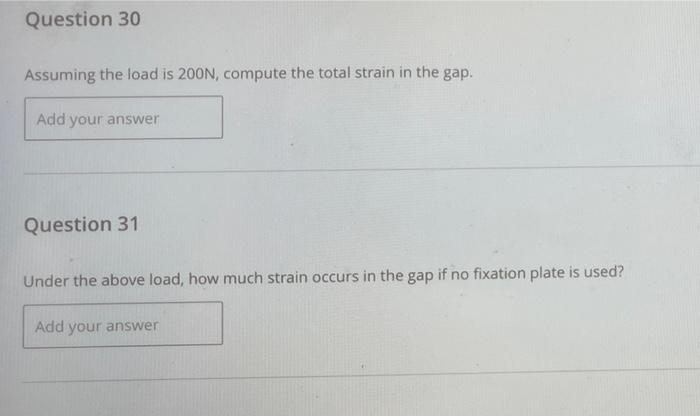

Question 30 Assuming the load is 200N, compute the total strain in the gap. Add your answer Question 31 Under the above load, how much strain occurs in the gap if no fixation plate is used? Add your answer
