2. What if there would be a Melmetal (800 kg) instead of a Munchlax? Draw an M-V diagram for the case. Hello I'm Melmetal and I weigh 800 kg.

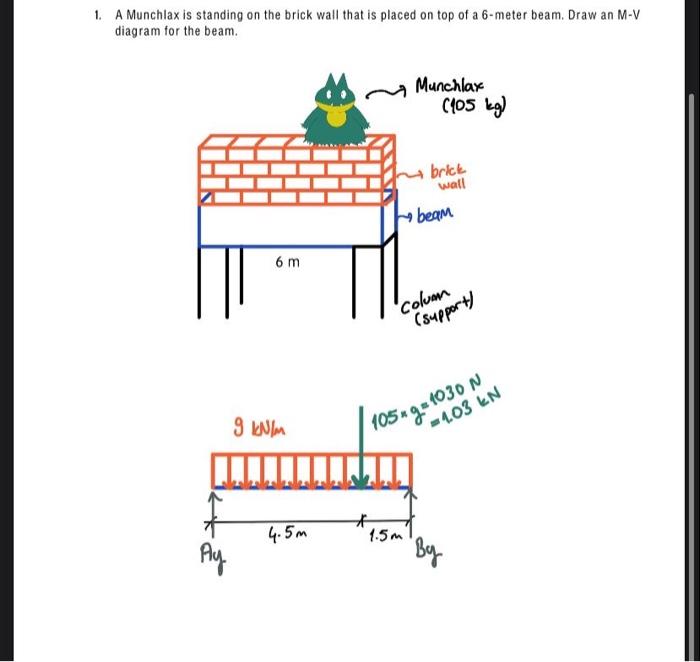

1. A Munchlax is standing on the brick wall that is placed on top of a 6-meter beam. Draw an M-V diagram for the beam. Munchlax (105 kg) brick wall 6 m Ay 9 kN/m 4.5m beam Colum (support) 105x g=1030 N -1.03 kN * 1.5m By
