Question 1 25 Marks For The Configuration Of The System Shown Below Compute The Angular Velocity And Angular Accelera 1 (103.36 KiB) Viewed 32 times
wcd=6
@cd=3
LENGTH 24in

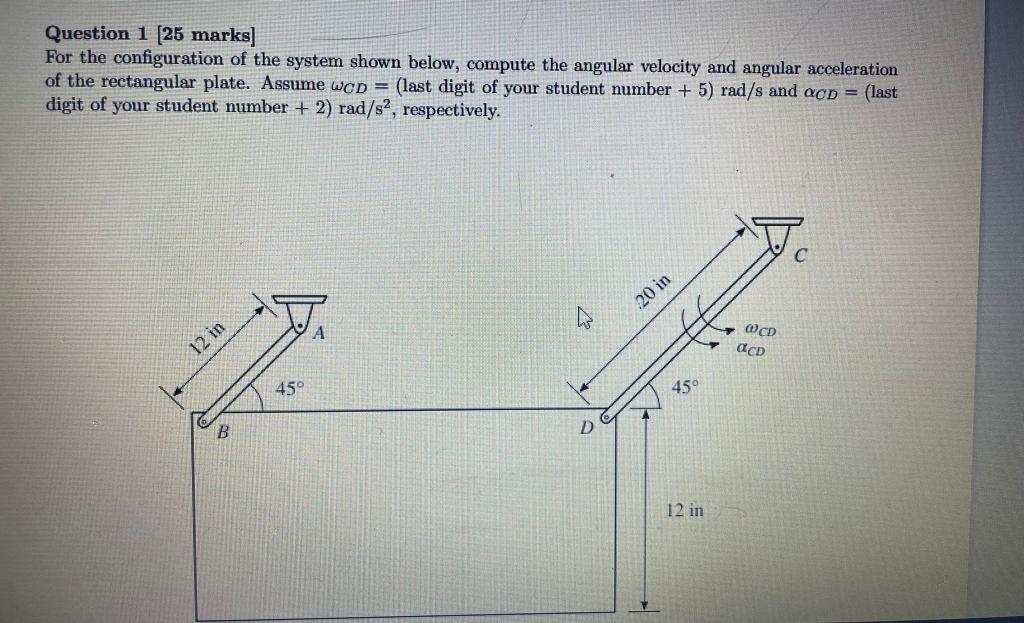

Question 1 (25 marks] For the configuration of the system shown below, compute the angular velocity and angular acceleration of the rectangular plate. Assume wcp = (last digit of your student number + 5) rad/s and acp = (last digit of your student number + 2) rad/s2, respectively. 20 in 43 A CD аср 12 in 45° 450 2 D 12 in
