6-86. The double tree AB is used to support the loadings applied to each of the single trees. Determine the total load t

Post by answerhappygod »

6 86 The Double Tree Ab Is Used To Support The Loadings Applied To Each Of The Single Trees Determine The Total Load T 1
6 86 The Double Tree Ab Is Used To Support The Loadings Applied To Each Of The Single Trees Determine The Total Load T 1 (61.16 KiB) Viewed 22 times

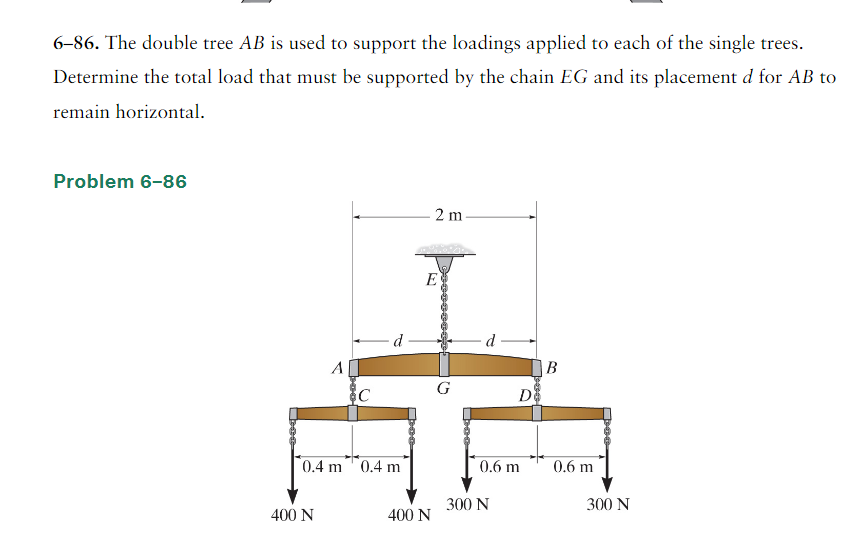

6-86. The double tree AB is used to support the loadings applied to each of the single trees. Determine the total load that must be supported by the chain EG and its placement d for AB to remain horizontal. Problem 6-86 2 m E d d A B C G DO 0.4 m 0.4 m 0.6 m 0.6 m 300 N 300 N 400 N 400 N
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
