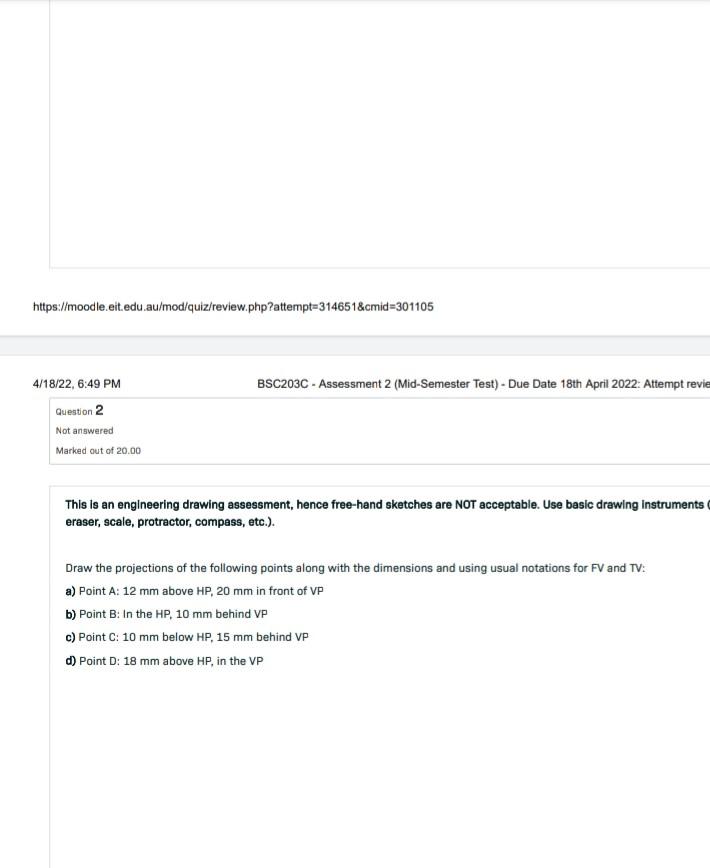

https://moodle.eit.edu.au/mod/quiz/revi ... mid=301105 BSC203C - Assessment 2 (Mid-Semester Test) - Due Date 18th April 2022: Attempt revie 4/18/22, 6:49 PM Question 2 Not answered Marked out of 20.00 This is an engineering drawing assessment, hence free-hand sketches are NOT acceptable. Use basic drawing Instruments eraser, scale, protractor, compass, etc.). Draw the projections of the following points along with the dimensions and using usual notations for FV and TV: a) Point A: 12 mm above HP, 20 mm in front of VP b) Point B: In the HP, 10 mm behind VP c) Point C: 10 mm below HP, 15 mm behind VP d) Point D: 18 mm above HP, in the VP
