IV. Determine the voltage across the diode, the output voltage, and the current in the resistor in the figure below. Plo

Post by answerhappygod »

Iv Determine The Voltage Across The Diode The Output Voltage And The Current In The Resistor In The Figure Below Plo 1
Iv Determine The Voltage Across The Diode The Output Voltage And The Current In The Resistor In The Figure Below Plo 1 (32.2 KiB) Viewed 25 times

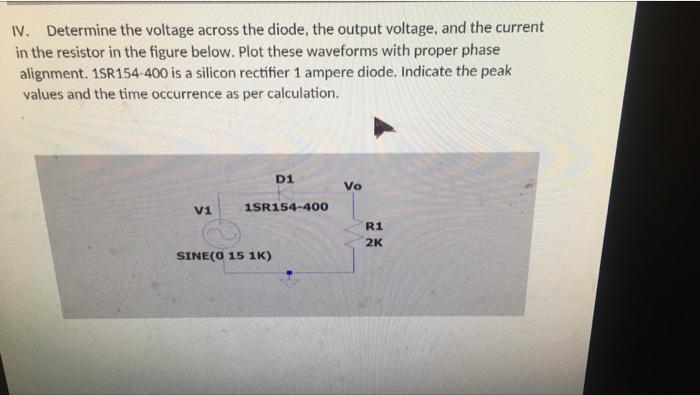

IV. Determine the voltage across the diode, the output voltage, and the current in the resistor in the figure below. Plot these waveforms with proper phase alignment. 15R154-400 is a silicon rectifier 1 ampere diode. Indicate the peak values and the time occurrence as per calculation. D1 Vo V1 1SR154-400 R1 2K SINE(O 15 1K)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
