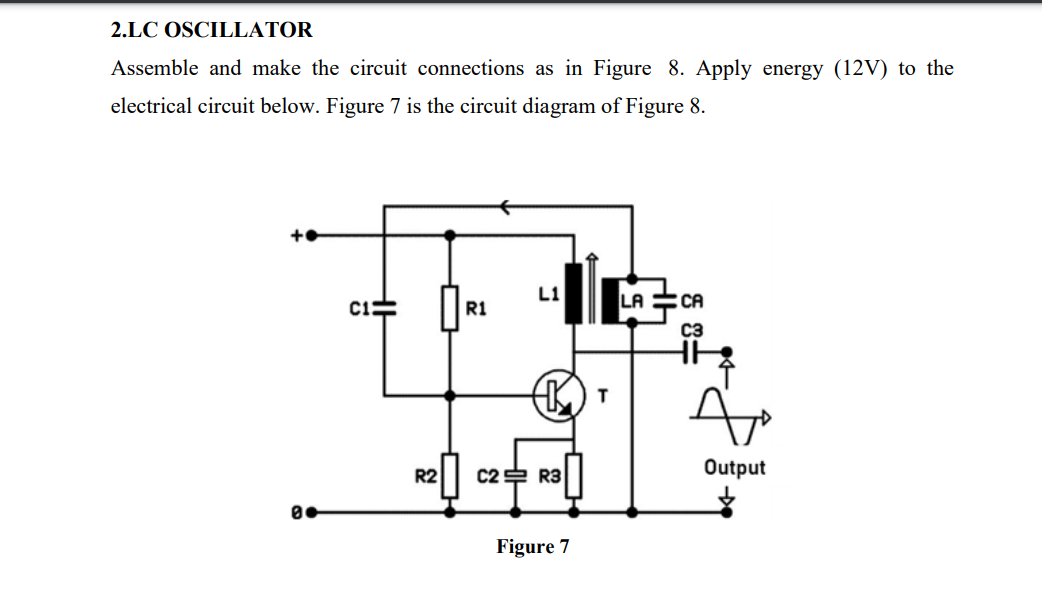

2.LC OSCILLATOR Assemble and make the circuit connections as in Figure 8. Apply energy (12V) to the electrical circuit below. Figure 7 is the circuit diagram of Figure 8. L1 C1 R1 LA ЧР CA C3 el & R2 C2 R3 Output . Figure 7

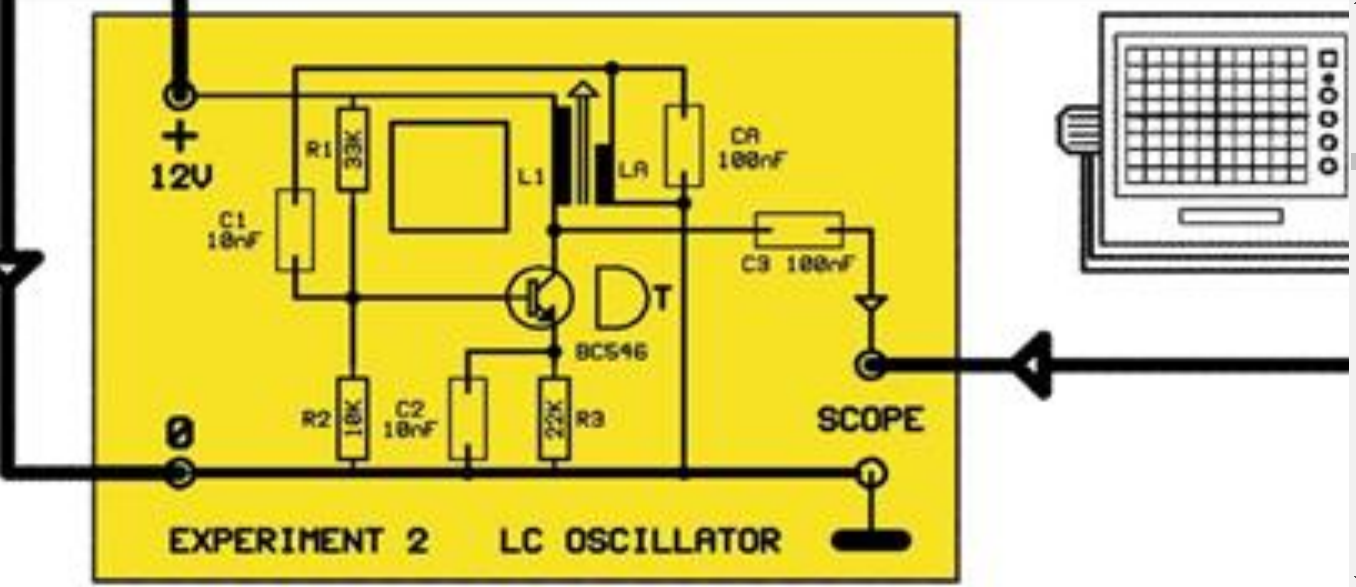

0.0000 СА 1eanF + 12V CI 18 LI LA ca 1886F DT BC546 R2 0 SCOPE 18 EXPERIMENT 2 LC OSCILLATOR

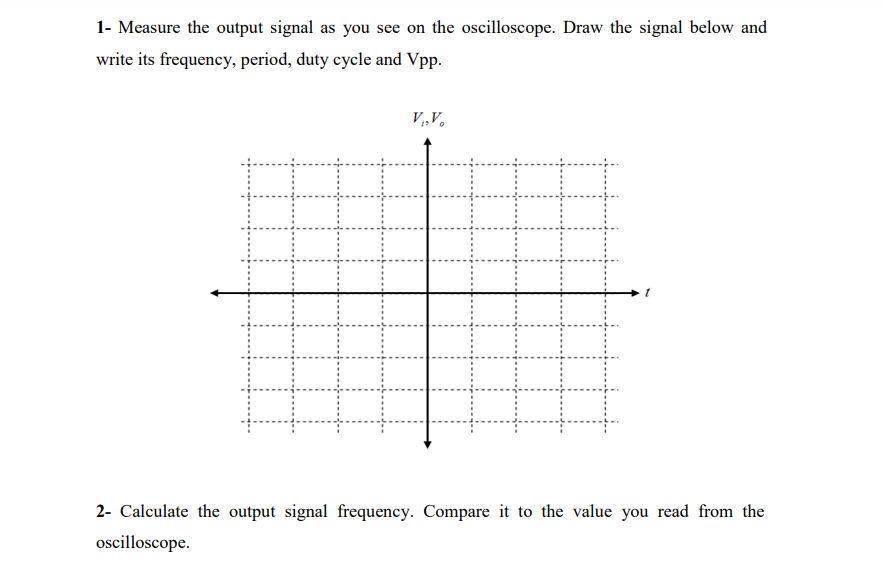

1- Measure the output signal as you see on the oscilloscope. Draw the signal below and write its frequency, period, duty cycle and Vpp. V.V. 1 2- Calculate the output signal frequency. Compare it to the value you read from the oscilloscope.
