Question 15 Assuming practical model, the current in the silicon diode circuit shown in the Figure is: R 5k2 VO Bias 12V

Post by answerhappygod »

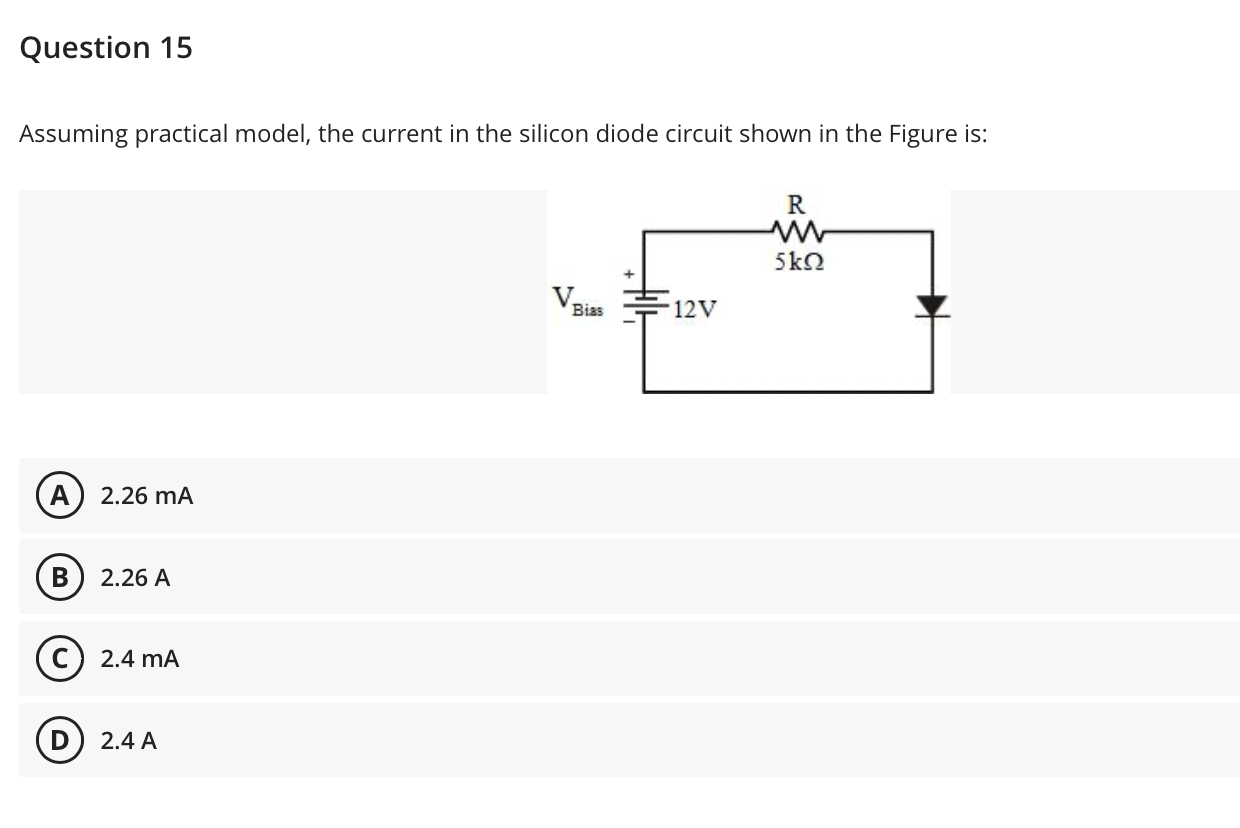

Question 15 Assuming Practical Model The Current In The Silicon Diode Circuit Shown In The Figure Is R 5k2 Vo Bias 12v 1
Question 15 Assuming Practical Model The Current In The Silicon Diode Circuit Shown In The Figure Is R 5k2 Vo Bias 12v 1 (64.43 KiB) Viewed 41 times
Question 15 Assuming practical model, the current in the silicon diode circuit shown in the Figure is: R 5k2 VO Bias 12V A 2.26 mA B 2.26 A © 2.4 mA 2.4 A
