(a) Determine the total impedance between terminals shown in Figure Q3(a) if w = 1500 rad/s. (4 marks) 12.5 uF HE 100 12

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(a) Determine the total impedance between terminals shown in Figure Q3(a) if w = 1500 rad/s. (4 marks) 12.5 uF HE 100 12

Post by answerhappygod »

A Determine The Total Impedance Between Terminals Shown In Figure Q3 A If W 1500 Rad S 4 Marks 12 5 Uf He 100 12 1
A Determine The Total Impedance Between Terminals Shown In Figure Q3 A If W 1500 Rad S 4 Marks 12 5 Uf He 100 12 1 (66.46 KiB) Viewed 59 times

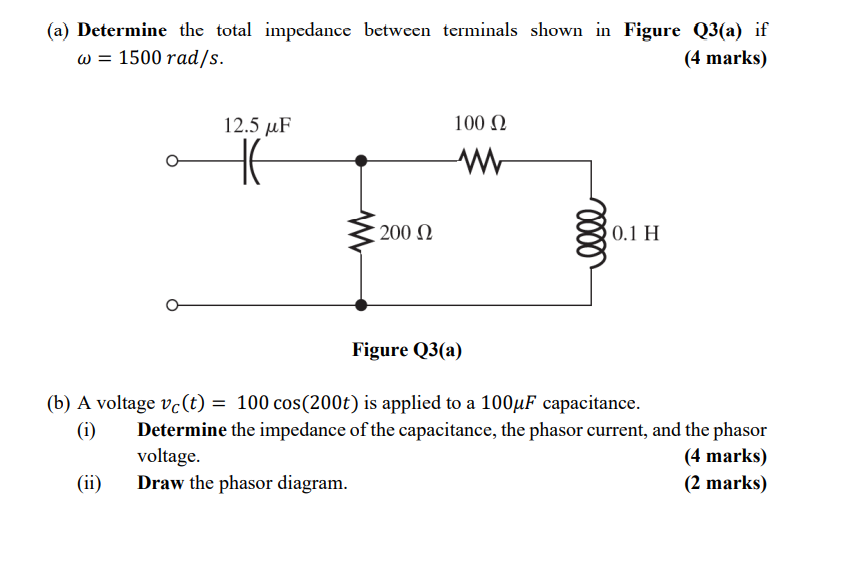

(a) Determine the total impedance between terminals shown in Figure Q3(a) if w = 1500 rad/s. (4 marks) 12.5 uF HE 100 12 W 2002 10000 0.1 H Figure Q3(a) (b) A voltage vc(t) = 100 cos(200t) is applied to a 100uF capacitance. (i) Determine the impedance of the capacitance, the phasor current, and the phasor voltage. (4 marks) (ii) Draw the phasor diagram. (2 marks)
