Question 3 (40 points) Design a continuous boost converter to provide an output of 15 V from a 9 V source. The load is N

Post by answerhappygod »

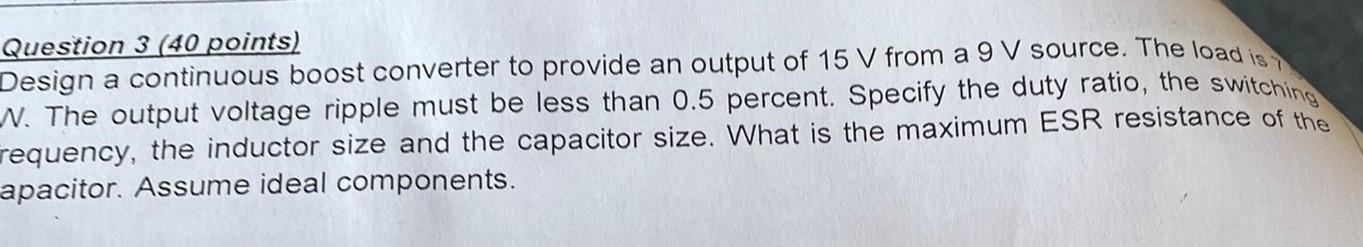

Question 3 40 Points Design A Continuous Boost Converter To Provide An Output Of 15 V From A 9 V Source The Load Is N 1
Question 3 40 Points Design A Continuous Boost Converter To Provide An Output Of 15 V From A 9 V Source The Load Is N 1 (50.45 KiB) Viewed 36 times
Load is 7.5
Question 3 (40 points) Design a continuous boost converter to provide an output of 15 V from a 9 V source. The load is N. The output voltage ripple must be less than 0.5 percent. Specify the duty ratio, the switching requency, the inductor size and the capacitor size. What is the maximum ESR resistance of the apacitor. Assume ideal components.
