2. (50 points) Explain what is the effect of adding an extra capacitor CF to the omp-amp differentiator shown in Fig. 2.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

2. (50 points) Explain what is the effect of adding an extra capacitor CF to the omp-amp differentiator shown in Fig. 2.

Post by answerhappygod »

2 50 Points Explain What Is The Effect Of Adding An Extra Capacitor Cf To The Omp Amp Differentiator Shown In Fig 2 1
2 50 Points Explain What Is The Effect Of Adding An Extra Capacitor Cf To The Omp Amp Differentiator Shown In Fig 2 1 (53.36 KiB) Viewed 38 times

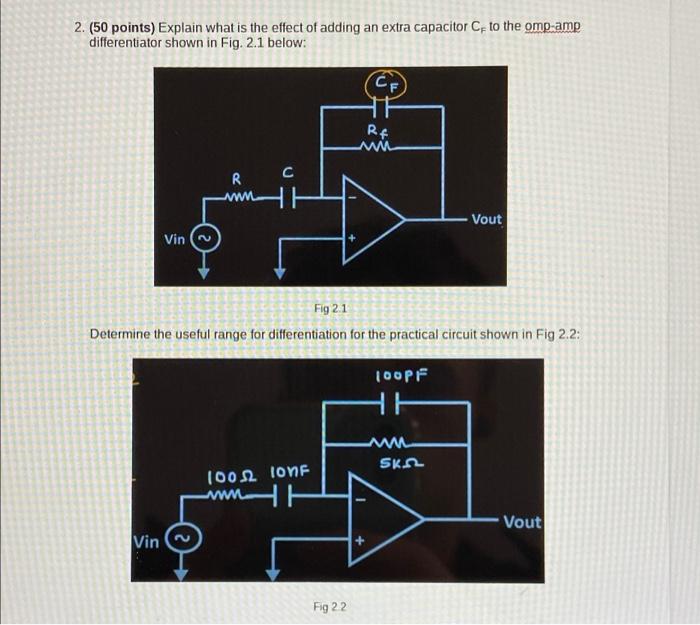

2. (50 points) Explain what is the effect of adding an extra capacitor CF to the omp-amp differentiator shown in Fig. 2.1 below: CE E Rf. ww C R www. Vout Vin Fig 21 Determine the useful range for differentiation for the practical circuit shown in Fig 2.2: loopF w SK 10012 Ione w E. Vout Vin Fig 22
