Sketch the Bode magnitude and phase plots for the following transfer functions. Indicate the slope of each straight-line

Post by answerhappygod »

Sketch the Bode magnitude and phase plots for the following
transfer functions. Indicate the slope of each straight-line
segment as well as the corner frequencies on your plots.

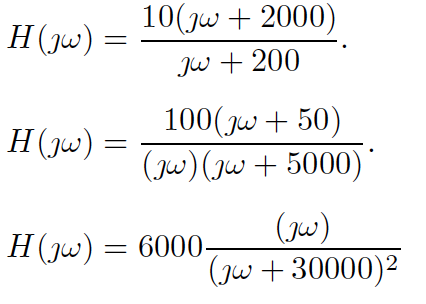

Sketch The Bode Magnitude And Phase Plots For The Following Transfer Functions Indicate The Slope Of Each Straight Line 1
Sketch The Bode Magnitude And Phase Plots For The Following Transfer Functions Indicate The Slope Of Each Straight Line 1 (21.01 KiB) Viewed 28 times
10(7W + 2000) H (1W) = JW + 200 100(JW + 50) H(w) = (sw)(1W + 5000) (sw) H(W) = 6000- (JW + 30000)
