The NMOS common source amplifier like the circuit below has a tradeoff between: 15 V 张 C2 RL RE WI MI PA 15 V The Gain A

Post by answerhappygod »

1
1 (36.02 KiB) Viewed 23 times

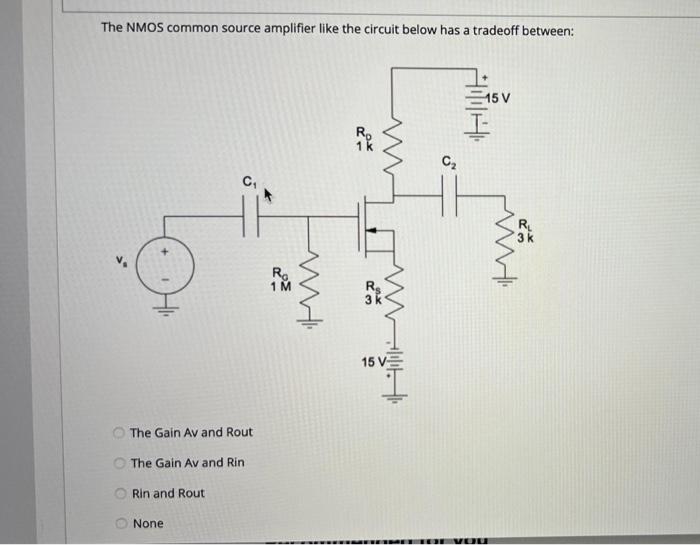

The NMOS common source amplifier like the circuit below has a tradeoff between: 15 V 张 C2 RL RE WI MI PA 15 V The Gain Av and Rout The Gain Av and Rin Rin and Rout None
