due in 1 hours

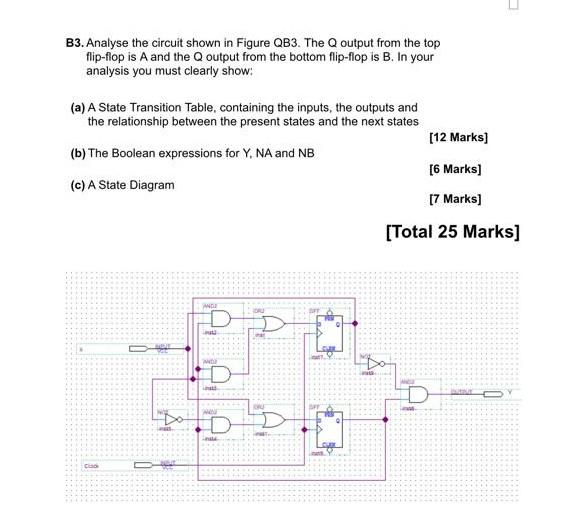

B3. Analyse the circuit shown in Figure QB3. The output from the top flip-flop is A and the output from the bottom flip-flop is B. In your analysis you must clearly show: (a) A State Transition Table, containing the inputs, the outputs and the relationship between the present states and the next states (b) The Boolean expressions for Y. NA and NB (c) A State Diagram [12 Marks) [6 Marks) [7 Marks) [Total 25 Marks] AND D D D DD D w
