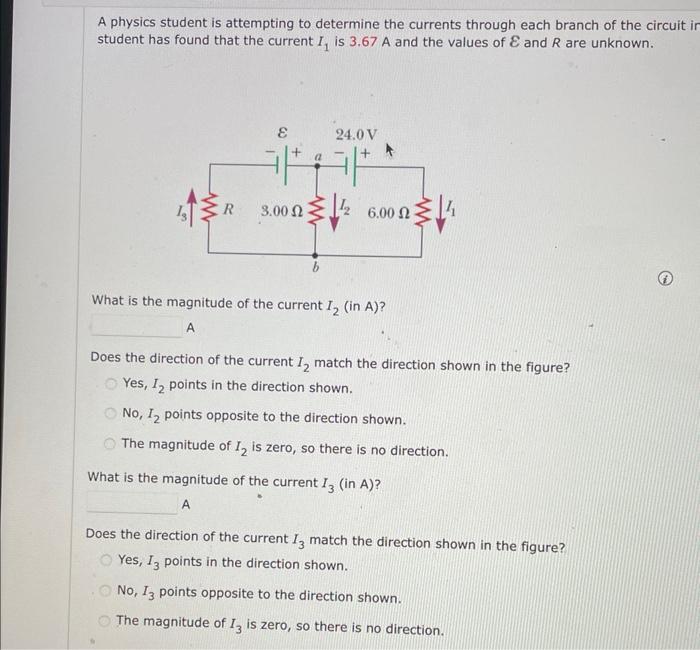

A physics student is attempting to determine the currents through each branch of the circuit i student has found that the current I1 is 3.67 A and the values of E and R are unknown. What is the magnitude of the current I2 (in A)? A Does the direction of the current I2 match the direction shown in the figure? Yes, I2 points in the direction shown. No, I2 points opposite to the direction shown. The magnitude of I2 is zero, so there is no direction. What is the magnitude of the current I3 (in A)? A Does the direction of the current I3 match the direction shown in the figure? Yes, I3 points in the direction shown. No, I3 points opposite to the direction shown. The magnitude of I3 is zero, so there is no direction.
