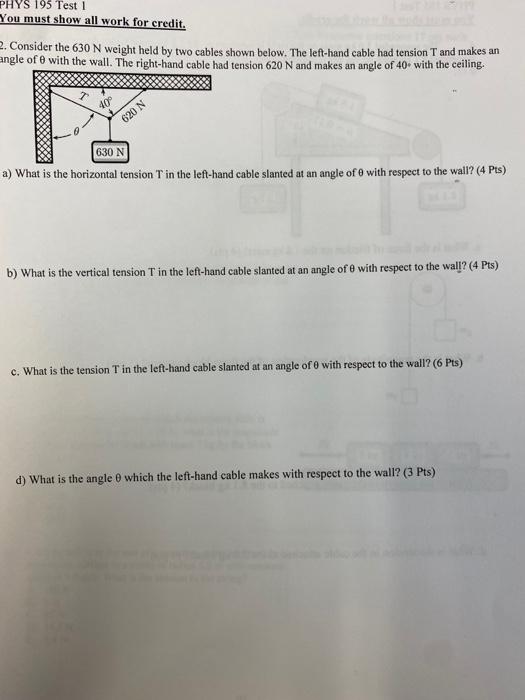

2. Consider the 630 N weight held by two cables shown below. The left-hand cable had tension T and makes an angle of θ with the wall. The right-hand cable had tension 620 N and makes an angle of 40+ with the ceiling. a) What is the horizontal tension T in the left-hand cable slanted at an angle of θ with respect to the wall? (4 Pts) b) What is the vertical tension T in the left-hand cable slanted at an angle of θ with respect to the wall? (4 Pts) c. What is the tension T in the left-hand cable slanted at an angle of θ with respect to the wall? (6 Pts) d) What is the angle θ which the left-hand cable makes with respect to the wall? (3 Pts)
