Conserce Locul below, which contains identical bulbs, ideal batteries, ideal wires having zero resistance, and perfect e

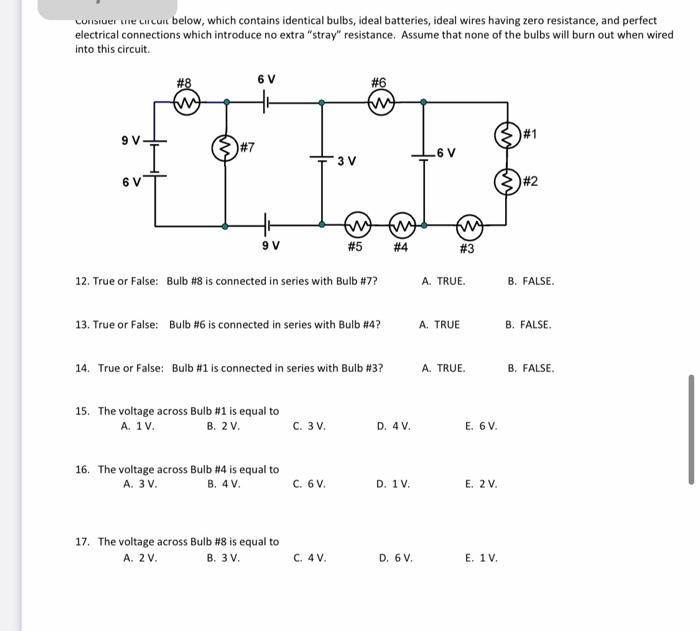

Conserce Locul below, which contains identical bulbs, ideal batteries, ideal wires having zero resistance, and perfect electrical connections which introduce no extra "stray" resistance. Assume that none of the bulbs will burn out when wired into this circuit. #8 6 V two tung #6 #1 #7 6 V 3 V 6V #2 w w w #3 9V #5 #4 12. True or False: Bulb #8 is connected in series with Bulb #7? A. TRUE. B. FALSE. 13. True or False: Bulb #6 is connected in series with Bulb #4? A. TRUE B. FALSE. 14. True or False: Bulb #1 is connected in series with Bulb #3? A. TRUE. B. FALSE. 15. The voltage across Bulb #1 is equal to A. 1V. B. 2 V. C.3V. D. 4V. E. 6 V 16. The voltage across Bulb #4 is equal to A. 3v. B. 4 V. C. 6 V. D. 1V. E. 2 V. 17. The voltage across Bulb #8 is equal to A. 2 v. B. 3 V. C. 4V. D. 6 V. E. 1V.
