An AC circuit consists of a gnerator, Eo = 20.3 V and 6 = 359 rad/s, a resistor, R = 36.8.1, and an inductor, L = 13.9 m

Post by answerhappygod »

An Ac Circuit Consists Of A Gnerator Eo 20 3 V And 6 359 Rad S A Resistor R 36 8 1 And An Inductor L 13 9 M 1
An Ac Circuit Consists Of A Gnerator Eo 20 3 V And 6 359 Rad S A Resistor R 36 8 1 And An Inductor L 13 9 M 1 (61.52 KiB) Viewed 43 times

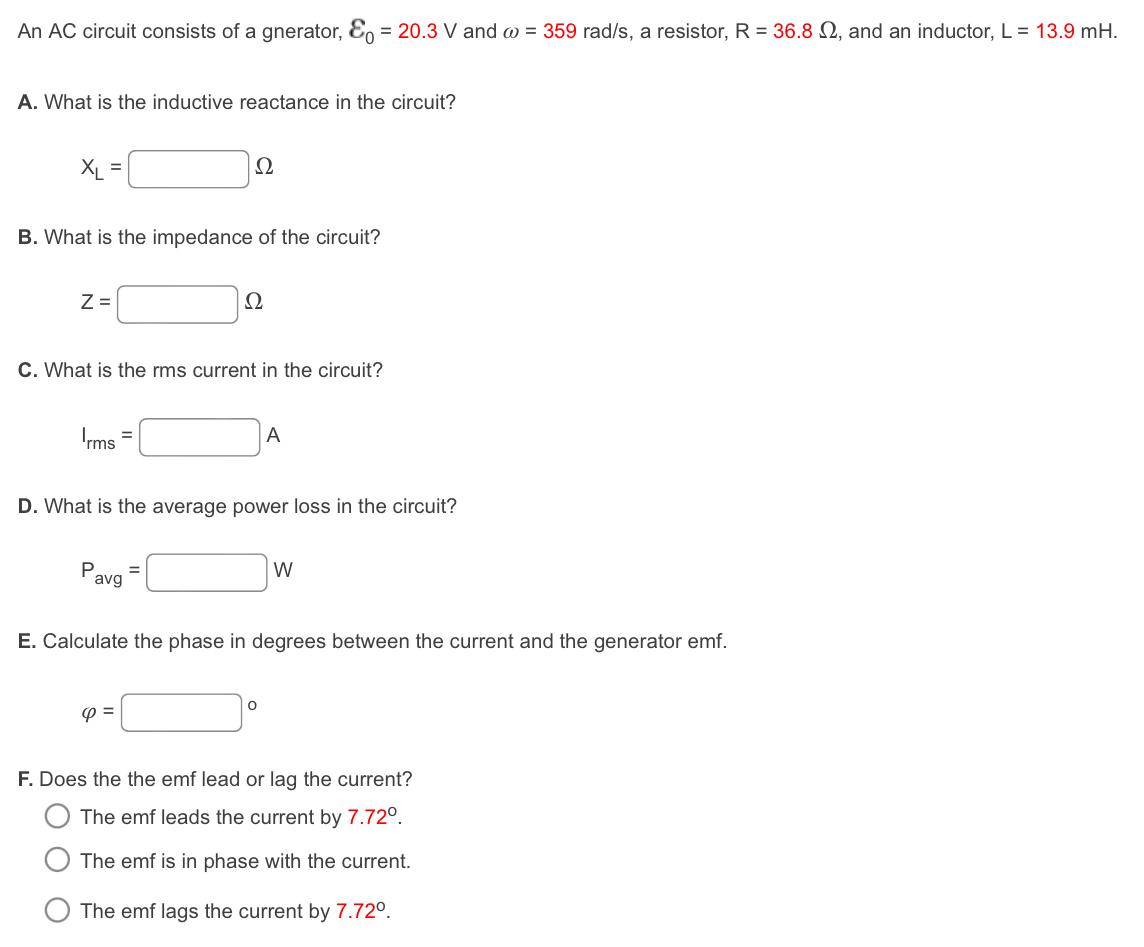

An AC circuit consists of a gnerator, Eo = 20.3 V and 6 = 359 rad/s, a resistor, R = 36.8.1, and an inductor, L = 13.9 mH. A. What is the inductive reactance in the circuit? = B. What is the impedance of the circuit? Z= 02 C. What is the rms current in the circuit? Irms A D. What is the average power loss in the circuit? P W avg E. Calculate the phase in degrees between the current and the generator emf. o φ= F. Does the the emf lead or lag the current? The emf leads the current by 7.72º. The emf is in phase with the current. The emf lags the current by 7.72º.
