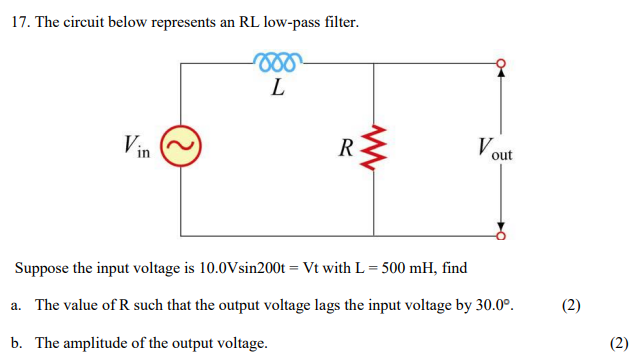

17. The circuit below represents an RL low-pass filter. 000 L Vin R Vout Suppose the input voltage is 10.0V sin 200t = Vt with L = 500 mH, find a a. The value of R such that the output voltage lags the input voltage by 30.09. (2) b. The amplitude of the output voltage. (2)

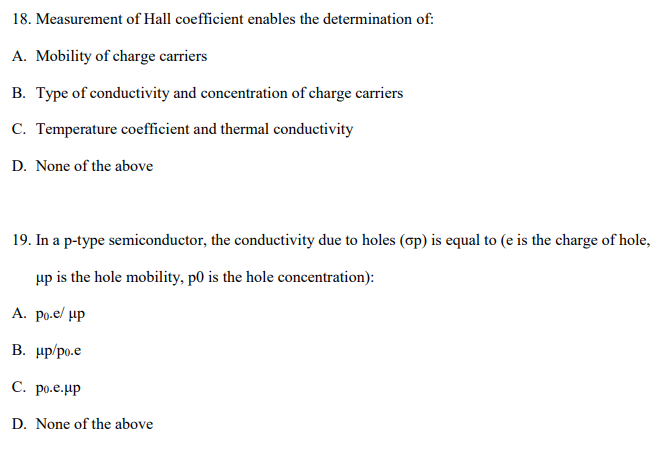

18. Measurement of Hall coefficient enables the determination of: A. Mobility of charge carriers B. Type of conductivity and concentration of charge carriers C. Temperature coefficient and thermal conductivity D. None of the above 19. In a p-type semiconductor, the conductivity due to holes (op) is equal to (e is the charge of hole, up is the hole mobility, po is the hole concentration): A. po.el up B. up/po.e C. po.e.up D. None of the above
