Question 2 A 2.2 apacitor is connected in series with a 1.5 M resistor along with a 60 V emf Rource and a switch a Calcu

Post by answerhappygod »

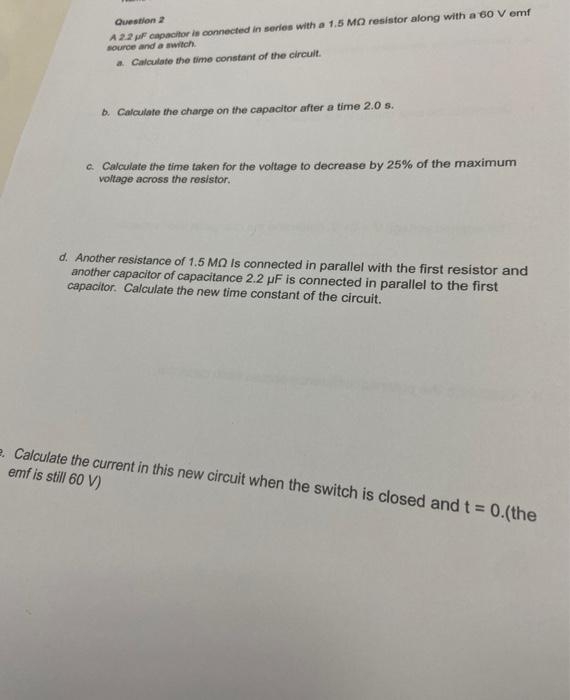

Question 2 A 2 2 Apacitor Is Connected In Series With A 1 5 M Resistor Along With A 60 V Emf Rource And A Switch A Calcu 1
Question 2 A 2 2 Apacitor Is Connected In Series With A 1 5 M Resistor Along With A 60 V Emf Rource And A Switch A Calcu 1 (28.07 KiB) Viewed 44 times
Question 2 A 2.2 apacitor is connected in series with a 1.5 M resistor along with a 60 V emf Rource and a switch a Calculate the time constant of the circult. d. Calculate the charge on the capacitor after a time 2.0 s. Calculate the time taken for the voltage to decrease by 25% of the maximum voltage across the resistor. d. Another resistance of 1.5 MO is connected in parallel with the first resistor and another capacitor of capacitance 2.2 pF is connected in parallel to the first capacitor. Calculate the new time constant of the circuit. 2. Calculate the current in this new circuit when the switch is closed and t = 0.(the emf is still 60 V)
