DI (8%) Problem 6: Basements that are prone to flooding are generally equipped with a sump pump, as illustrated in the i

[answerhappygod]

Di 8 Problem 6 Basements That Are Prone To Flooding Are Generally Equipped With A Sump Pump As Illustrated In The I 1 (257.51 KiB) Viewed 23 times

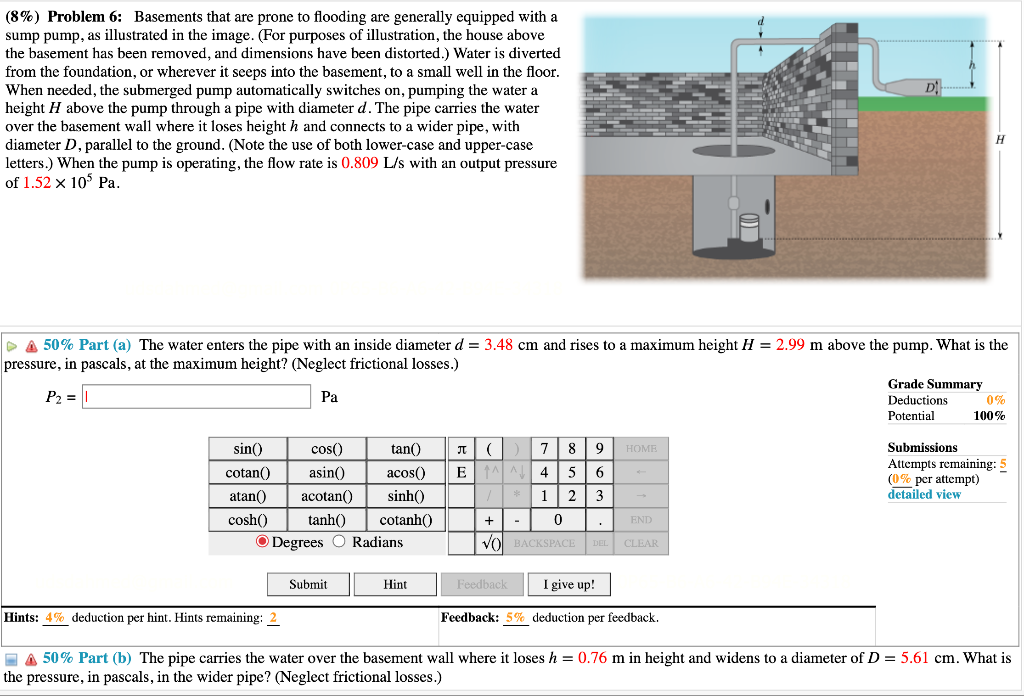

DI (8%) Problem 6: Basements that are prone to flooding are generally equipped with a sump pump, as illustrated in the image. (For purposes of illustration, the house above the basement has been removed, and dimensions have been distorted.) Water is diverted from the foundation, or wherever it seeps into the basement, to a small well in the floor. When needed, the submerged pump automatically switches on, pumping the water a height H above the pump through a pipe with diameter d. The pipe carries the water over the basement wall where it loses height h and connects to a wider pipe, with diameter D, parallel to the ground. (Note the use of both lower-case and upper-case letters. When the pump is operating, the flow rate is 0.809 L/s with an output pressure of 1.52 x 105 Pa. H a A 50% Part (a) The water enters the pipe with an inside diameter d = 3.48 cm and rises to a maximum height H = 2.99 m above the pump. What is the pressure, in pascals, at the maximum height? (Neglect frictional losses.) Grade Summary P2 = Pa Deductions 0% Potential 100% sin() cos tan cotan asino acos atan acotan sinh cosh tanh cotanh Degrees O Radians л ( 7 8 9 HOME EN 4 5 6 1*1 2 3 + - 0 END VO BACKSPACE DEL CLEAR Submissions Attempts remaining: 5 (0% per attempt) detailed view Submit Hint Feedback I give up! Hints: 4% deduction per hint. Hints remaining: 2 Feedback: 5% deduction per feedback. A 50% Part (b) The pipe carries the water over the basement wall where it loses h = 0.76 m in height and widens to a diameter of D= 5.61 cm. What is the pressure, in pascals, in the wider pipe? (Neglect frictional losses.)
