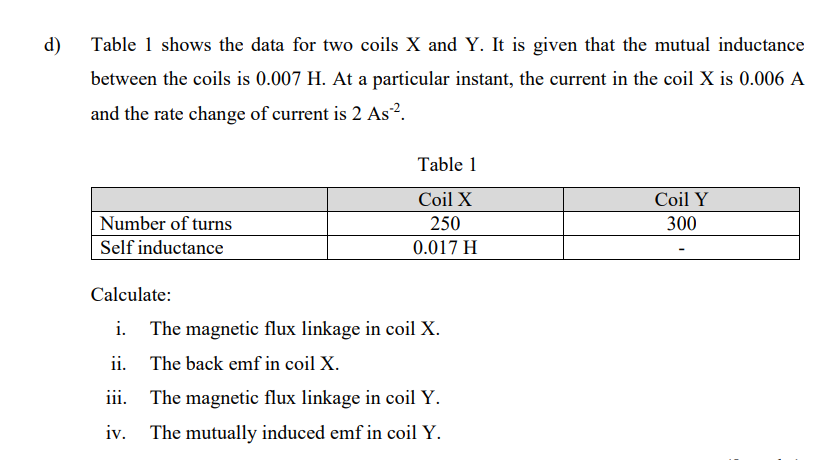

- D Table 1 Shows The Data For Two Coils X And Y It Is Given That The Mutual Inductance Between The Coils Is 0 007 H At 1 (44.98 KiB) Viewed 15 times
d) Table 1 shows the data for two coils X and Y. It is given that the mutual inductance between the coils is 0.007 H. At
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
d) Table 1 shows the data for two coils X and Y. It is given that the mutual inductance between the coils is 0.007 H. At
d) Table 1 shows the data for two coils X and Y. It is given that the mutual inductance between the coils is 0.007 H. At a particular instant, the current in the coil X is 0.006 A and the rate change of current is 2 As?. Table 1 Coil X 250 0.017 H Coil Y 300 Number of turns Self inductance Calculate: i. The magnetic flux linkage in coil X. ii. The back emf in coil X. iii. The magnetic flux linkage in coil Y. iv. The mutually induced emf in coil Y.
