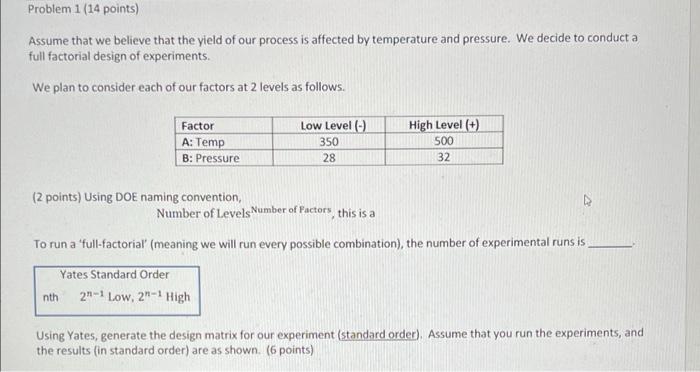

Problem 1 (14 points) Assume that we believe that the yield of our process is affected by temperature and pressure. We decide to conduct a full factorial design of experiments. We plan to consider each of our factors at 2 levels as follows. Factor A: Temp B: Pressure Low Level (-) 350 28 High Level (+) 500 32 (2 points) Using DOE naming convention, Number of Levels Number of Pactors, this is a To run a 'full-factorial (meaning we will run every possible combination), the number of experimental runs is Yates Standard Order nth 2- Low, 21-1 High Using Yates, generate the design matrix for our experiment (standard order). Assume that you run the experiments, and the results (in standard order) are as shown. (6 points)

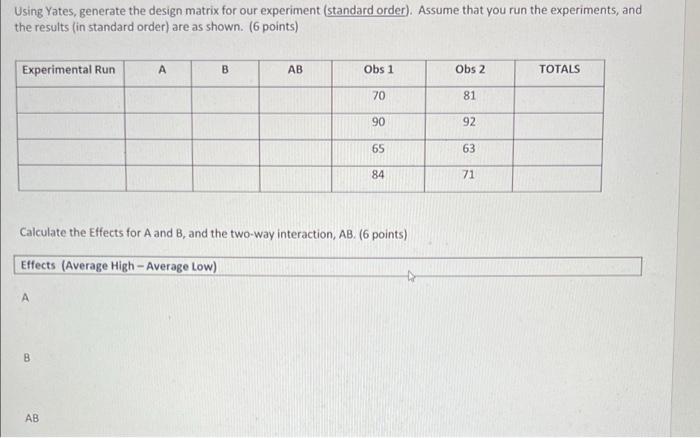

Using Yates, generate the design matrix for our experiment (standard order). Assume that you run the experiments, and the results (in standard order) are as shown. (6 points) Experimental Run А B AB Obs 1 Obs 2 TOTALS 70 81 90 92 65 63 84 71 Calculate the Effects for A and B, and the two-way interaction, AB. (6 points) Effects (Average High - Average Low) f А 8 AB
