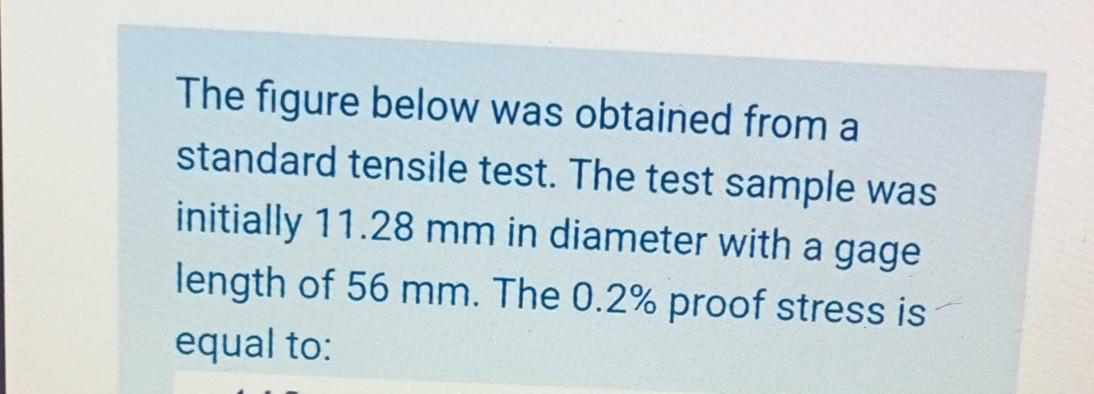

The figure below was obtained from a standard tensile test. The test sample was initially 11.28 mm in diameter with a gage length of 56 mm. The 0.2% proof stress is equal to:

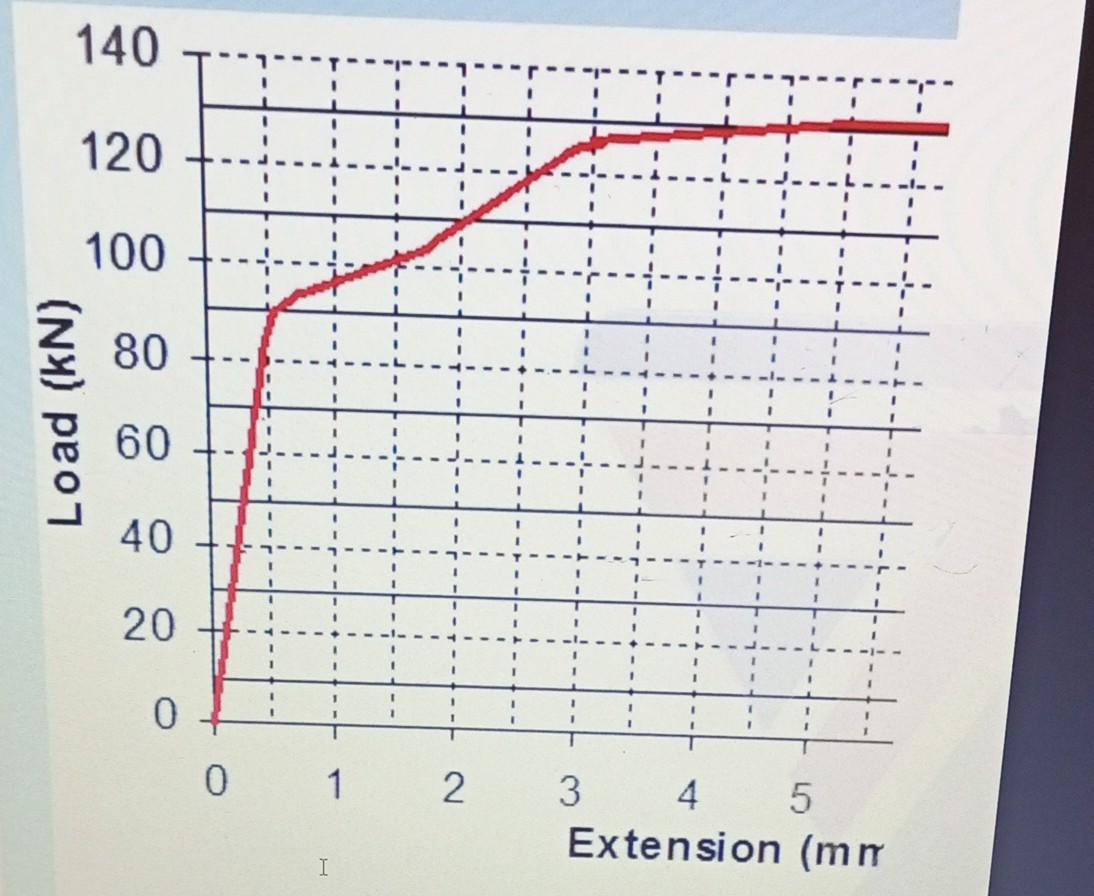

140 . 120 100 80 Load (kN) 60 40 20 0 0 1 2 3 4 5 3 4. 5 Extension (mm I

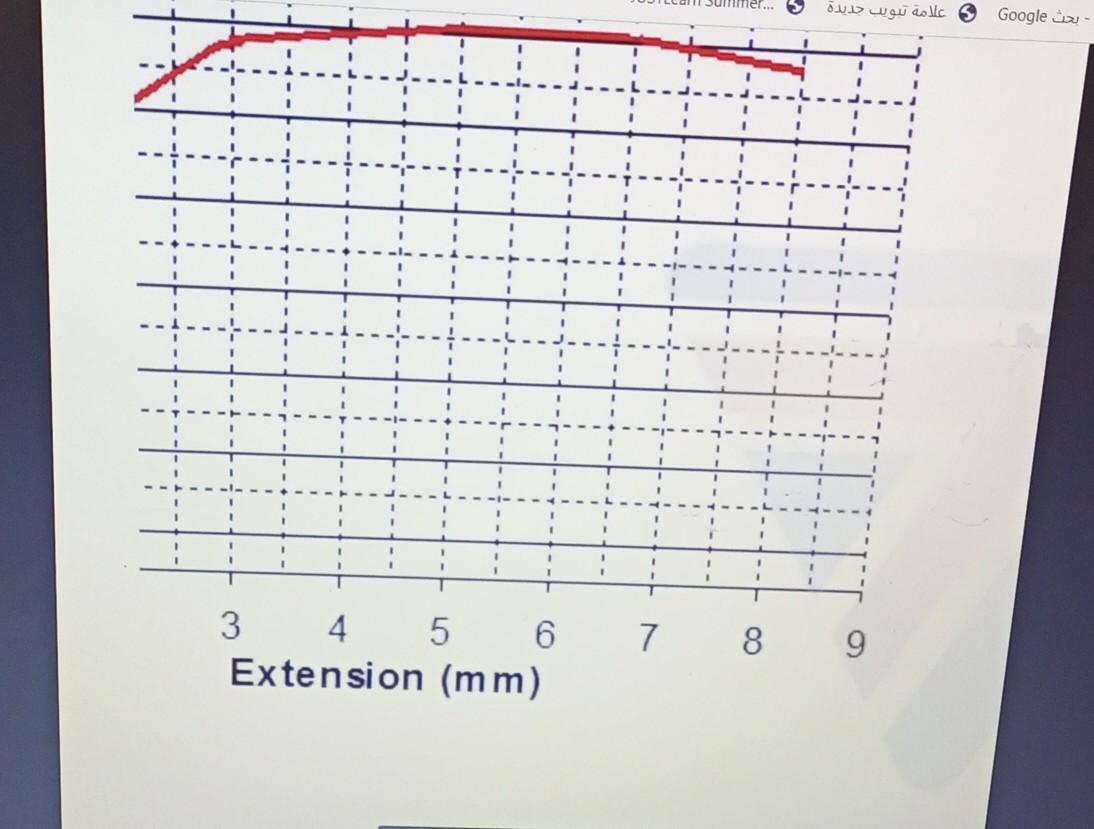

er... عامة للوال جديدة د بحث Google 3 4 5 5 6 Extension (mm) 7 8 9
