The load trace will involve the framing for a small deck addition to a residence. -4X BEAMS @4o.c. 4x10 GR-DERS HOUSE WA

Post by answerhappygod »

The Load Trace Will Involve The Framing For A Small Deck Addition To A Residence 4x Beams 4o C 4x10 Gr Ders House Wa 1
The Load Trace Will Involve The Framing For A Small Deck Addition To A Residence 4x Beams 4o C 4x10 Gr Ders House Wa 1 (362.12 KiB) Viewed 34 times

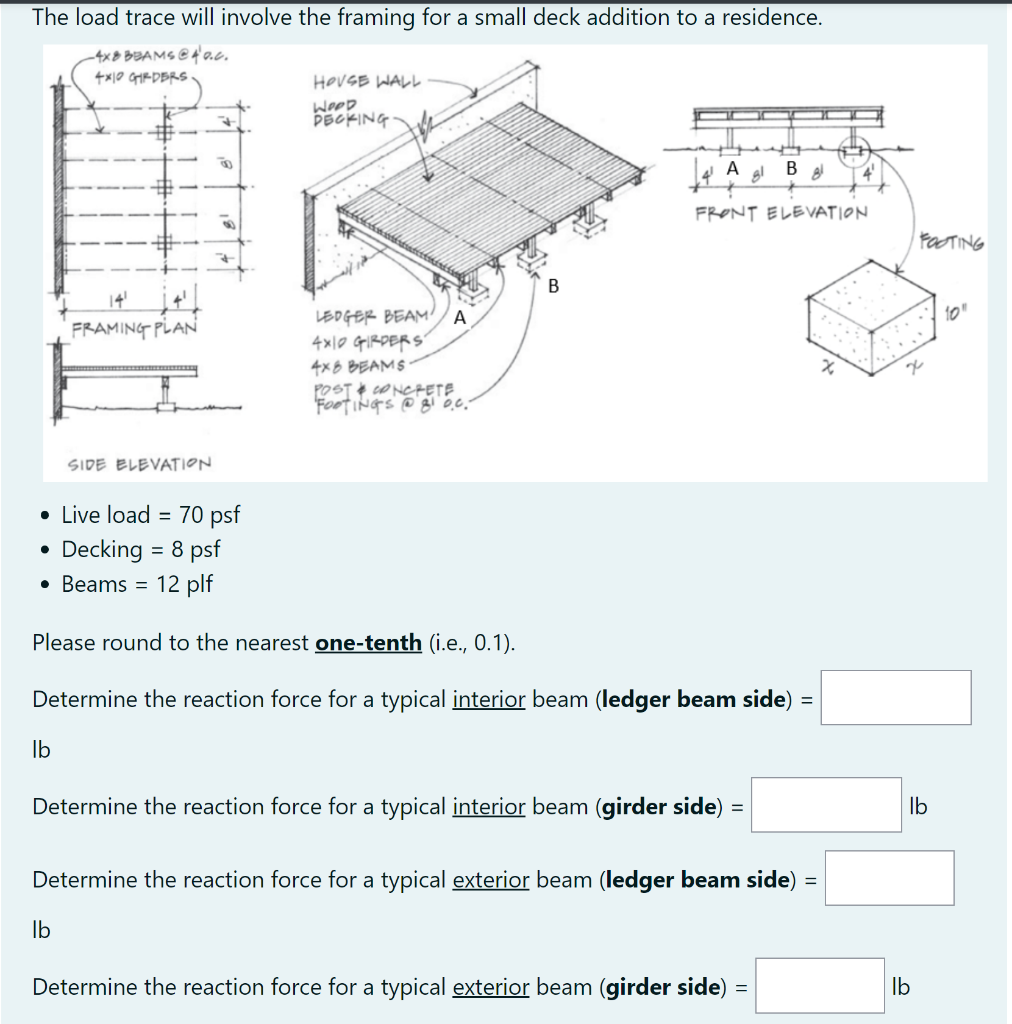

The load trace will involve the framing for a small deck addition to a residence. -4X BEAMS @4o.c. 4x10 GR-DERS HOUSE WALL Weed DECKING Ag! Bal 4 FRONT ELEVATION FOOTING B 14 FRAMING PLAN LEDGER BEAMA 4x10 GIRDERS 4x6 BEAMS POSTANCRETE Footings @gloc. 2 SIDE ELEVATION • Live load = 70 psf Decking = 8 psf • Beams = 12 plf . Please round to the nearest one-tenth (i.e., 0.1). Determine the reaction force for a typical interior beam (ledger beam side) Ib Determine the reaction force for a typical interior beam (girder side) = lb Determine the reaction force for a typical exterior beam (ledger beam side) = Ib Determine the reaction force for a typical exterior beam (girder side) = lb
