Problem 8.1: The beam cross-section illustrated below has dimensions of bj = 6.6 in, di = 0.6 in, b2 = 0.4 in, d2 = 10.8

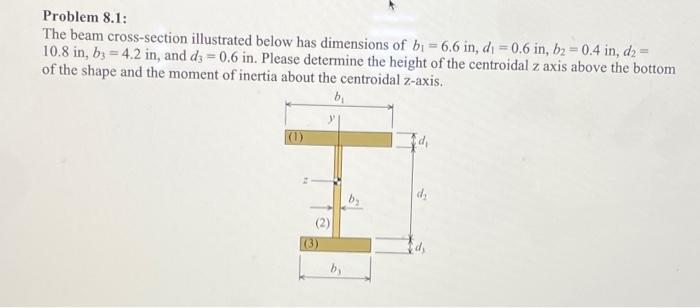

Problem 8.1: The beam cross-section illustrated below has dimensions of bj = 6.6 in, di = 0.6 in, b2 = 0.4 in, d2 = 10.8 in, bz = 4.2 in, and ds = 0.6 in. Please determine the height of the centroidal z axis above the bottom of the shape and the moment of inertia about the centroidal z-axis. bi (1) I di (2) bi
