2 The Spring Mount For One End Of The Leaf Spring On The Trailer Is Sketched Out Below Using A Safety Factor Of 2 And 1 (73.16 KiB) Viewed 25 times
table
2 The Spring Mount For One End Of The Leaf Spring On The Trailer Is Sketched Out Below Using A Safety Factor Of 2 And 2 (41.63 KiB) Viewed 25 times

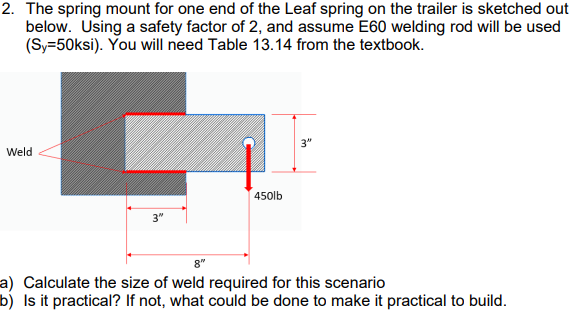

2. The spring mount for one end of the Leaf spring on the trailer is sketched out below. Using a safety factor of 2, and assume E60 welding rod will be used (Sy=50ksi). You will need Table 13.14 from the textbook. C 3" Weld 450lb 3" 8" a) Calculate the size of weld required for this scenario b) Is it practical? If not, what could be done to make it practical to build.

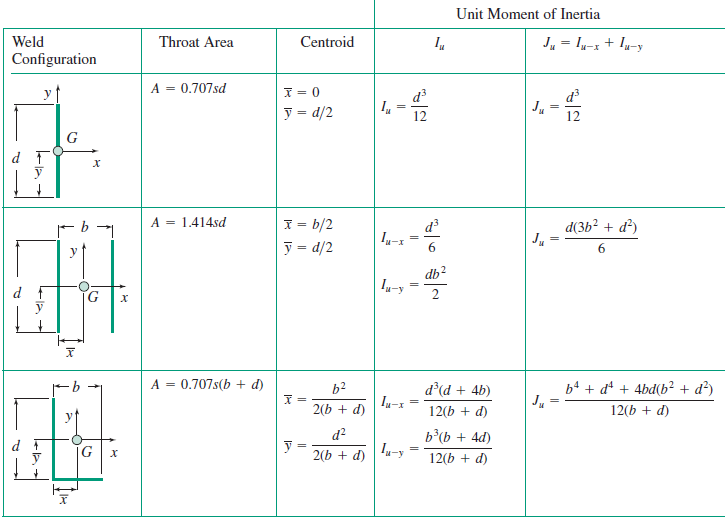

Unit Moment of Inertia Throat Area Centroid 1, Weld Configuration J. = 1/-x + 1,- A = 0.707sd I = 0 y = 0/2 I d 12 J d 12 G х y A = 1.414sd 1 1 d d(3b2 + d) T = b/2 y = 0/2 14-1 J 6 1,- db 2 х X A = 0.707s(b + d) 1,- JU b4 + 4 + 4bd(b+ d ) 12(b + d) ਸ b2 = 2(b + d) d2 у 2(b + d) dd + 4b) 12(b + d) b)(b + 4d) 12(b + d) = x X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
