1. Draw the necessary views showing the front view as a full section. . All dimension units are millimeters. • Create an

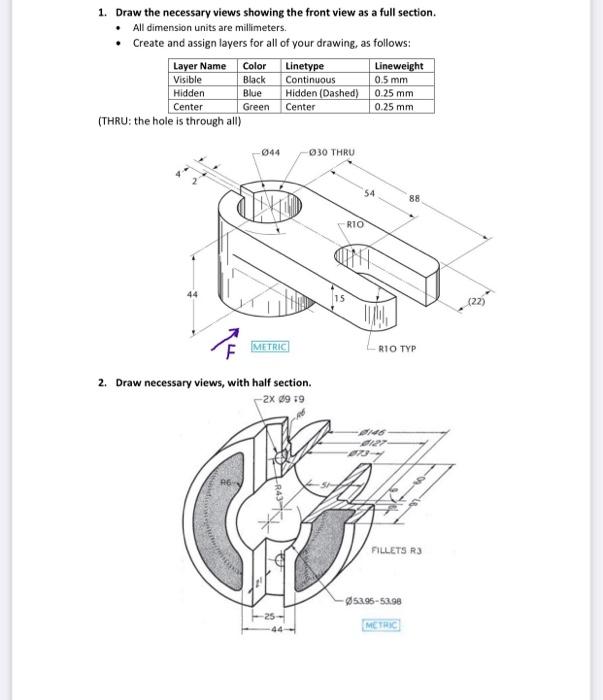

1. Draw the necessary views showing the front view as a full section. . All dimension units are millimeters. • Create and assign layers for all of your drawing, as follows: Layer Name Color Linetype Lineweight Visible Black Continuous 0.5 mm Hidden Hidden (Dashed) 0.25 mm Center Green Center 0.25 mm (THRU: the hole is through all) Blue 044 30 THRU 54 88 RIO 44 (22) 집 METRIC RIO TYP 2. Draw necessary views, with half section. -2x 89 9 6 12 97037 FILLETS R3 25- 44- -529-53.98 METHIC
