Problem #1 (25 points) 3.3 m 3 m 2 m For the oil pump rig shown, link AB causes the beam BCE to oscillate as the crank O

Post by answerhappygod »

Problem 1 25 Points 3 3 M 3 M 2 M For The Oil Pump Rig Shown Link Ab Causes The Beam Bce To Oscillate As The Crank O 1
Problem 1 25 Points 3 3 M 3 M 2 M For The Oil Pump Rig Shown Link Ab Causes The Beam Bce To Oscillate As The Crank O 1 (27.82 KiB) Viewed 37 times
please do it in 40 minutes please urgently... I'll give you up thumb definitely

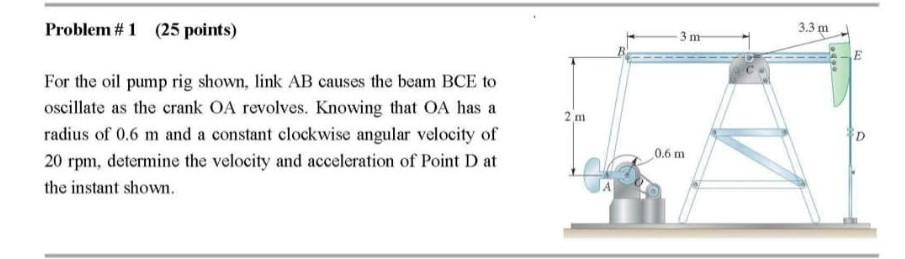

Problem #1 (25 points) 3.3 m 3 m 2 m For the oil pump rig shown, link AB causes the beam BCE to oscillate as the crank OA revolves. Knowing that OA has a radius of 0.6 m and a constant clockwise angular velocity of 20 rpm, determine the velocity and acceleration of Point D at the instant shown. D 0.6 m
