Derive equations to describe displacement of a cam that has the following characteristics in the dimensional form: a. It

Post by answerhappygod »

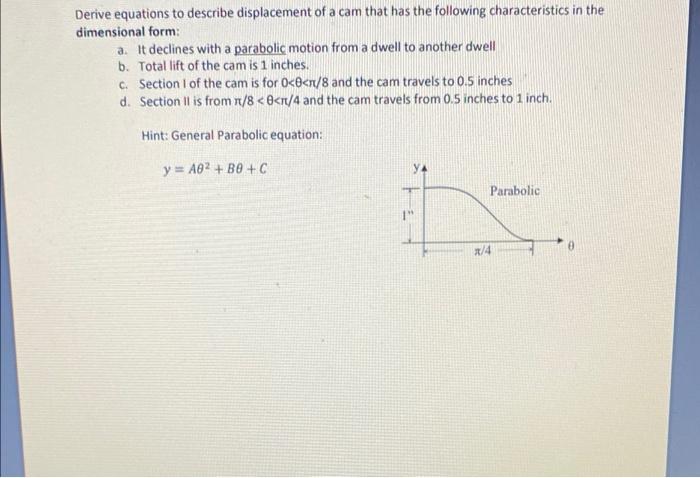

Derive Equations To Describe Displacement Of A Cam That Has The Following Characteristics In The Dimensional Form A It 1
Derive Equations To Describe Displacement Of A Cam That Has The Following Characteristics In The Dimensional Form A It 1 (45.87 KiB) Viewed 22 times
Derive equations to describe displacement of a cam that has the following characteristics in the dimensional form: a. It declines with a parabolic motion from a dwell to another dwell b. Total lift of the cam is 1 inches. c. Section 1 of the cam is for O<O</8 and the cam travels to 0.5 inches d. Section It is from rt/8 <0</4 and the cam travels from 0.5 inches to 1 inch. Hint: General Parabolic equation: y = 482 + +C Parabolic 2/4
