Topic: It is required to design, synthesize, and analyze a transporting mechanism. The purpose of the mechanism is to li

[answerhappygod]

Topic It Is Required To Design Synthesize And Analyze A Transporting Mechanism The Purpose Of The Mechanism Is To Li 1 (45.01 KiB) Viewed 29 times

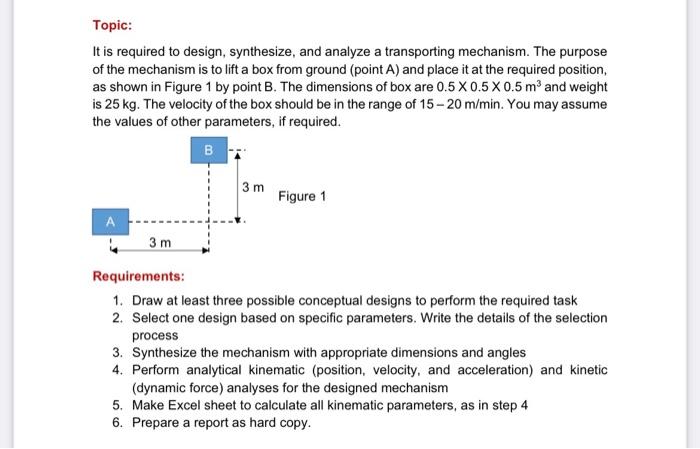

Topic: It is required to design, synthesize, and analyze a transporting mechanism. The purpose of the mechanism is to lift a box from ground (point A) and place it at the required position, as shown in Figure 1 by point B. The dimensions of box are 0.5 X 0.5 X 0.5 m and weight is 25 kg. The velocity of the box should be in the range of 15-20 m/min. You may assume the values of other parameters, if required. B 3 m Figure 1 3 m Requirements: 1. Draw at least three possible conceptual designs to perform the required task 2. Select one design based on specific parameters. Write the details of the selection process 3. Synthesize the mechanism with appropriate dimensions and angles 4. Perform analytical kinematic (position, velocity, and acceleration) and kinetic (dynamic force) analyses for the designed mechanism 5. Make Excel sheet to calculate all kinematic parameters, as in step 4 6. Prepare a report as hard copy.
