Given the data below, produced from a laboratory thickener test - where a sample of mine waste and an industrial floccul

[answerhappygod]

Given The Data Below Produced From A Laboratory Thickener Test Where A Sample Of Mine Waste And An Industrial Floccul 1 (57.87 KiB) Viewed 35 times

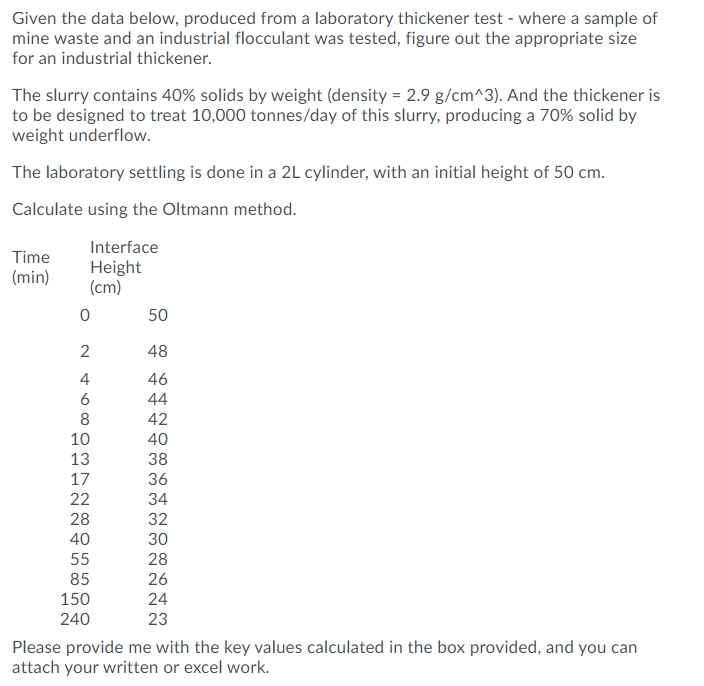

Given the data below, produced from a laboratory thickener test - where a sample of mine waste and an industrial flocculant was tested, figure out the appropriate size for an industrial thickener. The slurry contains 40% solids by weight (density = 2.9 g/cm^3). And the thickener is to be designed to treat 10,000 tonnes/day of this slurry, producing a 70% solid by weight underflow. The laboratory settling is done in a 2L cylinder, with an initial height of 50 cm. Calculate using the Oltmann method. Time (min) Interface Height (cm) o 50 N 46 to 48 4 6 44 8 42 10 40 13 38 17 36 22 34 28 32 40 30 55 28 85 26 150 24 240 23 Please provide me with the key values calculated in the box provided, and you can attach your written or excel work.
